Panduit Panduit TMSTHS13-D0


Description

Industry Description

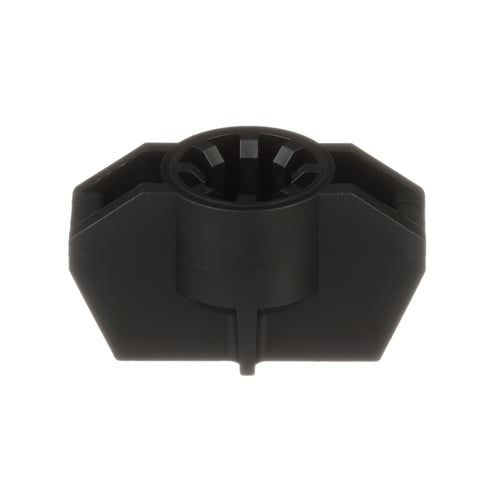

The cable tie mount in black is installed onto a 0.50" (12.7mm) stud. It is made of impact-modified weather-resistant nylon 6.6, which increases mechanical strength, heat and wear resistance, and stiffness in outdoor environments. It comes in packages of 500.

Modified Industry Description

CABLE TIE MOUNT, .50 (12.7MM) STUD,

AD Description

Panduit® TMSTHS13-D0 Stud Tie Mount, Threaded Stud Mount, Nylon 6.6, Black

Vendor Description

Stud mounts used with heavy cable ties shall provide an economical method of replacing cushion clamps, pipe hangers and other metal clamps used in heavy duty OEM and transportation equipment. The stud mount shall be hammered on or spun on existing weld studs, huck-spin bolts or exposed standard bolts. Optionally, the mount can be secured with Panduit® Sta-Strap® chassis/panel mount ties through the frame. The installed mount shall exceed the minimum loop tensile of the cable tie for which it is designed. The material shall be UV-resistant and meet the application temperature and the recognized static ground storage requirements for heavy vehicles. The material shall be impact-resistant and resist all common fuels, salt spray and washdown chemicals.

Specifications

Application
Outdoor
Color
Black
Country of Origin
USA
Insulation
Other
Length1
16.5000
Material
Impact-Modified Weather-Resistant Nylon 6-6
Mounting
1/2" stud dia. (13mm)
Operating_Temperature
-76°F (-60°C) - 185°F (85°C)
Special Features

  • 1-piece design
  • Designed for use with cable tie to route and secure cable bundle, air, water and hydraulic lines
  • Easily applied to bolts or studs with a light hammer blow or turning of the mount
  • Fits a wide variety of common stud sizes and cable tie
  • Installs faster than metal clamp with threaded fastener
  • Installs onto fastener such as bolts, Huck® fastener and welded studs
  • Made of impact modified weather-resistant nylon 6.6
  • Offers multiple position configurations for flexibility in application
  • Provides a standoff from the frame rail to help prevent bundle abrasion during vehicle operation
  • Remains in vehicle during service or repair, reattach bundle with new cable tie
  • Secures bundle with cable tie up to 4 discrete bundle per mount
  • Stands up to tough application environments with a weather-resistant nylon 6.6 material
  • Stands up under vibration
  • Two sided design
Standard
RoHS Compliant
Sub_Brand
Panduit
Type
Cable Tie Mounts - Threaded Stud Applied
