Panduit Pan-Net Panduit Pan-Net S7512B


Description

Industry Description

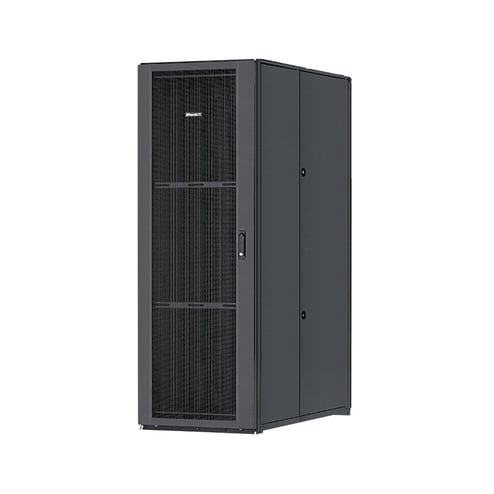

Net-Access™ S-Type Cabinet frame with top panel. Single hinge perforated front door. Split perforated rear doors open in the middle to minimize door swing footprint. Solid side panels (2), casters, POU brackets (1 set), cage nut rails (2 sets). Dimensions: 85.0in H x 27.6in W x 42.0in D (2160mm x 700mm x 1070mm). Color: Black

Modified Industry Description

700MMW X 1067MMD X 45 RU NET-ACCESS

AD Description

Panduit® Net-Access™ S7512B Type S Enclosure Cabinet, 85 in L x 27-1/2 in W x 42 in D, Steel

Vendor Description

Net-Access™ type-S cabinets provide data center managers and systems integrators an unprecedented range of features in a cost-effective cabinet platform for server, network and pre-configured cabinet applications. Integral cabinet air seal features and seamless integration with passive hot and cold air containment components provide efficient utilization of cooling capacity and contribute to reduced cooling energy consumption. An innovative frame design maximizes RU utilization saving as much as 15% of the floor space while safely accommodating equipment loads. Offered in a variety of widths, heights and depths, they can be specified for a variety of applications in any facility to meet the diverse application needs of today's data centers.

Specifications

Application
NA
Color
Black
Country of Origin
MEX
Finish
Epoxy Coated
Length1
85
Material
Steel
Special Features

  • Cabinet configurations for hot aisle/cold aisle or vertical exhaust ducting deployments
  • Cabinets and accessories are integrally bonded without the use of grounding wires to provide a safe and reliable network while reducing installation costs
  • Cable management ready rails included help speed deployment
  • Can be ganged together for complete streamlined appearance improving data center aesthetics
  • Design flexibility, scalability and improved aesthetics for easier moves, adds and changes
  • Easily adjustable rear rails can be quickly repositioned, heavy duty leveling legs can be accessed from top or bottom for faster deployment
  • Front single hinge door and split perforated rear door with 69% open perforation
  • Fully integral bonded without the use of grounding wires equipment rails, door and side panels
  • Integrated casters to provide easy roll to position
  • Net-Access™ type-S cabinets are ideal for server application as these cabinets come standard with front fixed rails and rear adjustable equipment rails
  • Provides bend radius control for each rack unit and can be positioned where required on cabinet posts for cable protection for increased network availability
  • S-type cabinets are manufactured with a welded and assembled steel frame
  • Single hinge perforated front door
  • Split perforated rear doors open in the middle to minimize door swing footprint
  • The top of cabinet Includes molded edge protection and snap-in covers and pre-installed in cable entry openings to prevent air leakage
  • Wide range of cabinet designs available for specific thermal applications, resulting in improved thermal efficiencies and reductions in energy expenditures
Standard
EIA 310E
Sub_Brand
Panduit
Type
Type S
