Panduit Panduit RSCK2-4-1


Description

Industry Description

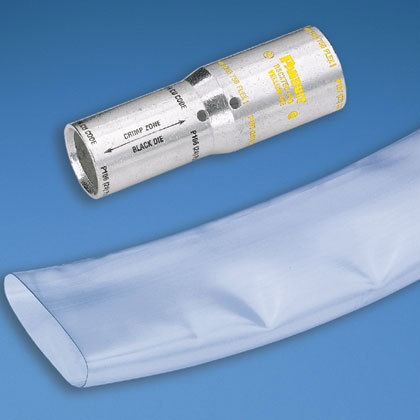

In-line reducing splice kit, #2 - #4 AWG code conductor. HSTTPN62-750-Q crystal clear PVC heat shrink 5/8" dia. x 7.500" long.

Modified Industry Description

COPPER COMPRESSION IN-LINE REDUCING

AD Description

Panduit® RSCK2-4-1 In-Line Reducing Splice Kit, 600 VAC, 66.37 kcmil Conductor

Vendor Description

Panduit® Compression Connectors are designed for use with many different code and flex conductor types and are available in a broad range of styles and sizes including copper one-hole, two-hole, and blank tongue lugs and splices; aluminum one-hole and two-hole lugs and splices; and copper in-line reducing splices.

Specifications

Country of Origin
IND
Material
Copper
Series
RSCK
Special Features

  • Color code reduces from brown, reduces to gray
  • Die index reduces from P33, reduces to P29
  • Panduit® copper compression RSC in line reducing splice and crystal clear PVC heat shrink sleeves pre-cut to length to insulate reducing splice
  • Panduit® crystal clear PVC heat shrink is UL recognized with a temperature rating of 150 deg C, high temperature insulating property
  • Panduit® crystal clear PVC heat shrink passes Telcordia GR-347-CORE compression and cut-through penetration test and abrasion resistance test
  • Rated for 600 VAC applications when Panduit® crystal clear PVC heat shrink is applied
Sub_Brand
Panduit
Type
In-Line
Voltage Rating
NA
