Panduit Pan-Net Panduit Pan-Net QL1A1M2BM24C1

Industry Description

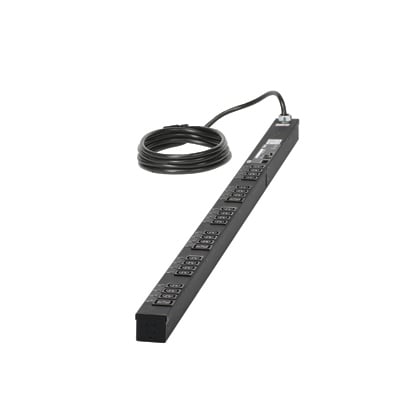

Vertical switched power strip with per outlet power and environmental monitoring, 30 A, 120V, 24 NEMA 5-15R receptacles, red LED current monitor, RJ-45 Ethernet port with two RJ12 remote environmental ports, two 20 A double pole magnetic breaker on-off switch with integral switch guard, and 10' power cord with NEMA L5-30P twist lock plug. UL and c-UL Listed. Dimensions: 70.0"H x 2.5"W x 2.3"D Breaker Doghouse add 1.44" (87.4mm) to overall depth (1778mm x 64mm x 57mm)

Modified Industry Description

Vertical POU, 30 Amp, 120V, NEMA

AD Description

Panduit® SmartZone™ PanView iQ™ QL1A1M2BM24C1 Rack Power Outlet Unit, 120 VAC, 30 A, 24 Outlets, 10 ft L Cord, Surface Mount

Vendor Description

PViQ™ Power Outlet Units shall integrate with the Panduit® PIM™ Software Platform to enable intelligent management of the in-cabinet power usage. This system helps to quickly identify and resolve power issues, find and reclaim available or underutilized power capacity and automate collection of real-time and accurate power information. The units shall have the ability to power cycle individual outlets or a group of outlets on or off to reboot equipment. They shall have remote per outlet monitoring for power consumption and environmental capability to monitor temperature, airflow, humidity or dew point. The units are capable of mounting vertically to the Net-Access™ Cabinet, Net-SERV® Cabinet or Panduit® 4 post racks. The vertical power outlet units shall have 30, 50and 60 A circuits, which have multiple outlet options with standard IEC compliant locking receptacles. Power outlet units shall have a black powder-coated finish, with a 10 foot cord utilizing NEMA, California and IEC style plugs. Installed units shall allow quick and easy firmware updates.
