Panduit Panduit PV6-10R-T

Name: Panduit PV6-10R-T
Brand: Panduit
SKU: 2972764
Price: 1.55 USD
Availability: InStock

Panduit PV6-10R-T

Kirby Risk #: 2972764

UPC: 07498387120, 074983871209, 50074983871204, 00074983871209

Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)

Brand: Panduit

Description

Industry Description

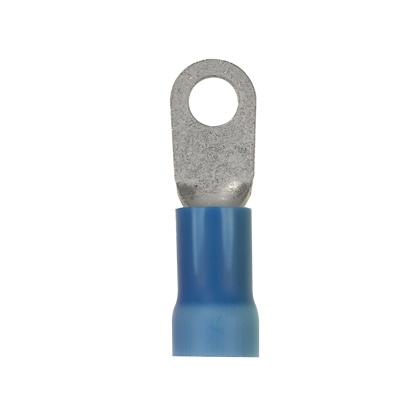

Ring Terminal, large wire, 6 AWG, #10 stud size, vinyl insulated, bulk package.

Modified Industry Description

RING TERMINAL, LARGE WIRE, VINYL

AD Description

Panduit® Pan-Term® PV6-10R-T PV Series Insulated Loose Piece Ring Terminal, 6 AWG Conductor, 1.62 in L, Brazed Seam Barrel, Copper, Blue

Color	Blue
Conductor Type	Stranded
Connection	Funnel Entry
Conductor Size	6
Country of Origin	MEX
Enclosure	Ring shape
Finish	Tin Plated
Insulation	PVC
Length1	1.62
Material	Copper
Mounting	7/16" (.4375)
Series	PV Series
Size	#10
Special Features	Brazed seam protects terminal barrel from splitting during the crimp process Insulation support helps to prevent wire damage in bending applications Internal barrel serrations assure good wire contact and maximum tensile strength Ring tongue design assures a secure connection in high vibration applications
Standard	cULus Listed 587H E52164
Sub_Brand	Panduit
Temperature_Rating	221
Type	Insulated Loose Piece
Voltage Rating	600
