Panduit Pan-Net Panduit Pan-Net PUP5C04BU-U
Panduit Pan-Net PUP5C04BU-U
Kirby Risk #: 2972368
UPC: 07498328211, 074983282111, 00074983282111
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Panduit Pan-Net
Description
Industry Description

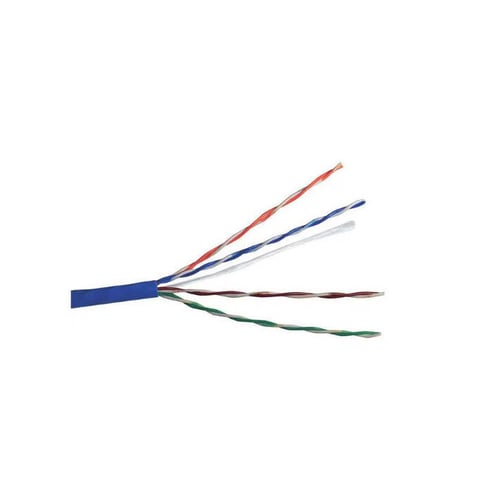

Copper cable, category 5e U/UTP, plenum (CMP), 4-pair, conductors are 24 AWG construction with FEP/polyolefin insulation, twisted in pairs and protected by a low smoke, flame-retardant PVC jacket, blue.
Modified Industry Description
COPPER CABLE, CAT 5E, 4-PAIR, 24
AD Description
Panduit® PUP5C04BU-U TX5e™ Type CMP Cat 5e U/UTP Plenum Cable, 80 VAC, (4 Pairs) 24 AWG Bare Copper Conductor, 1000 ft L
Specifications
| Application |
Indoor
|
|---|---|
| Brand Name |
Panduit Pan-Net
|
| Color |
Blue
|
| Conductor Material |
Other
|
| Conductor Size |
24
|
| Construction |
U/UTP
|
| Country of Origin |
USA
|
| Insulation_Material |
FEP/Polyolefin
|
| Jacket_Material |
PVC
|
| Number Of Conductors |
8
|
| Resistance |
Flame Retardant
|
| Special Features |
|
| Standard |
Meets ANSI/TIA-568-C.2 Category 5e standard, NFPA 262, meets IEEE 802.3af and IEEE 802.3at for PoE applications, RoHS Compliant
|
| Sub_Brand |
Panduit
|
| Temperature_Rating |
-4 to 167
|
| Type |
Type CMP Cat 5e U/UTP
|
| Voltage Rating |
80
|
| Width_2 |
12.0000
|
