Panduit Panduit PUM-100-C30

Industry Description

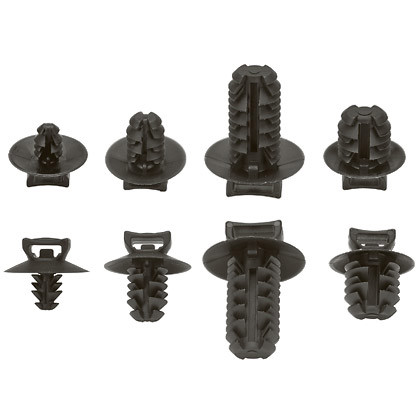

The fir tree push mount is black and requires a panel hole diameter of 0.35 to 0.40" (9.0 to 10.0 mm). It is made of heat-stabilized nylon 6.6, which increases mechanical strength, heat and wear resistance, and stiffness. It comes in packages of 100.

Modified Industry Description

FIR TREE PUSH MOUNT, .35-.40 (9.0MM

AD Description

Panduit® PUM-100-C30 Through Hole Push Mount With Umbrella, Fir Tree Hole Mount, Nylon 6.6, Black

Vendor Description

Fasteners for automotive wire harnesses shall provide fifty pounds of pull-out force with no more than 45 deg maximum rotation of the installed bundle. When installed in the panel, the fastening method shall firmly retain a minimum wire gauge of 12 AWG within +/- 10mm (0.394 in) of the initial installation point. The mounts shall require no more than 14 pounds of insertion force. Mounts with wider cable tie slot capability may have a proportionately higher insertion and pull-out capability. Mounts shall be self-tensioning to prevent rattles and degradation of the mount over the life of the vehicle. The material for the mounts and the cable ties shall be heat stabilized Nylon 6.6, black. Application temperature range shall be -60 to 115 deg C (-76 to 239 deg F).
