Panduit Pan-Net Panduit Pan-Net PSM7004IG-KEM


Description

Industry Description

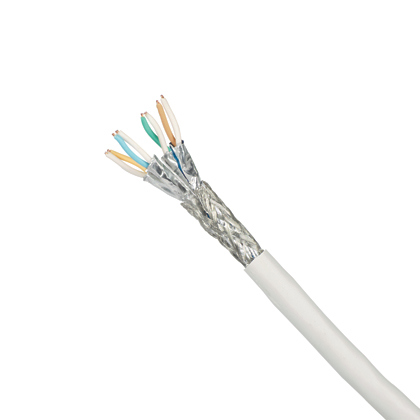

Category 7 low smoke, halogen free, fire retardant (LSHF-FR), 4-pair S/FTP shielded marine copper cable. Stranded copper conductors are 4 x 2/0.27mm+2+. Conductors are twisted in pairs, each individual twisted pair is surrounded by a foil, covered with an

AD Description

Panduit® TX7000™ PSM7004IG-KEM Cat 7 LSHF-FR High Density Copper Cable, 80 VAC, (4-Pair) 23 AWG S/FTP Shielded Stranded Copper Conductor, 3280 ft L

Vendor Description

Cat 7 cable shall meet or exceed the IEC 61156-5 Cat 7 component standard and be characterized to 1000 MHz. The conductors shall be 23 AWG stranded copper wire construction with polyethylene insulation. The copper conductors shall be twisted in pairs each surrounded by a foil, covered with an overall braided shield within an oil- and fuel-resistant, low smoke zero halogen (LSZH) jacket for use in harsh environment applications.

Specifications

Application
Harsh Environment; Indoor; Marine; Oil/Gas
Color
Gray
Construction
S/FTP
Country of Origin
DEU
Length1
24.0000
Number Of Conductors
4
Outside_Diameter
0.31
Special Features

  • Descending length cable marking
  • Guaranteed channel performance above the standards
  • Individually foiled pairs with overall braided shield
  • Robust jacketing
  • Tested beyond the standard
Standard
Exceeds the requirements of ISO 11801 Class EA and ANSI/TIA-568-C.2 Category 6A standards; Exceeds the component requirement of the IEC 61156-5 Category 7 standard; Standard Compliance:EN 50173-1, EN 50288-4-1, ISO/IEC 11801, IEC 61156-5,DNV specificatio
Sub_Brand
PanNet
Temperature_Rating
185
Type
Copper Cable
Voltage Rating
8.63
