Panduit Panduit PNF18-10LF-M

Name: Panduit PNF18-10LF-M
Brand: Panduit
SKU: 2971432
Price: 0.42 USD
Availability: InStock

Panduit PNF18-10LF-M

Kirby Risk #: 2971432

UPC: 07498381068, 074983810680, 50074983810685, 00074983810680

Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)

Brand: Panduit

Description

Industry Description

Locking Fork Terminal, nylon insulated, funnel entry, 22-18 AWG, #10 stud size, bulk package.

Modified Industry Description

Locking Fork Terminal, funnel

AD Description

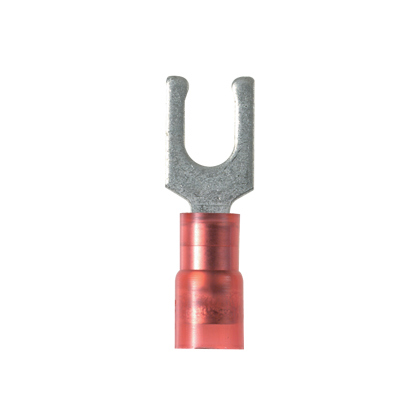

Panduit® Pan-Term® PNF18-10LF-M PNF-LF Insulated Fork Terminal, 22 to 18 AWG Conductor, 0.89 in L, Seamed/Sleeved Barrel, Copper, Red

Color	Red
Conductor Type	Solid/Stranded
Connection	Funnel Entry
Conductor Size	22 to 18
Country of Origin	MEX
Enclosure	Fork shape
Finish	Tin Plated
Insulation	Nylon
Length1	0.89
Material	Copper
Mounting	7/32
Series	PNF-LF
Size	#10
Special Features	Fork design provides for fast and easy installation, without the need to remove fastener Internal barrel serrations assure good wire contact and maximum tensile strength Locks in place for secure connection Metal insulation grip sleeve crimps to wire insulation, providing protection to the crimp joint during high vibration applications
Standard	Yes - American Bureau of Shipping (ABS)
Sub_Brand	Panduit
Temperature_Rating	221
Type	Insulated
Voltage Rating	600
