Panduit Panduit PNF14-6R-3K

Name: Panduit PNF14-6R-3K
Brand: Panduit
SKU: 2971414
Price: 0.45 USD
Availability: InStock

Panduit PNF14-6R-3K

Kirby Risk #: 2971414

UPC: 07498381151, 074983811519, 00074983811519

Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)

Brand: Panduit

Description

Industry Description

Ring Terminal, nylon insulated, funnel entry, metal sleeve, 16 Â– 14 AWG, #6 stud size.

Modified Industry Description

Ring Terminal, nylon insulated, 16

AD Description

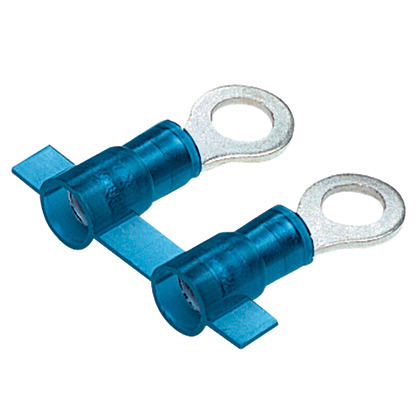

Panduit® Pan-Term® Reel Smart™ PNF14-6R-3K Insulated Ring Terminal, 16 to 14 AWG Conductor, 0.87 in L, Seamed/Sleeved Barrel, Copper, Blue

Color	Blue
Conductor Type	Solid/Stranded
Connection	Funnel Entry
Conductor Size	16 to 14
Country of Origin	MEX
Enclosure	Ring shape
Finish	Tin Plated
Insulation	Nylon
Length1	0.87
Material	Copper
Mounting	1/4" (.250)
Series	PNF
Size	#6
Special Features	Continuously molded design provides reliable, consistent performance through the applicator for a high quality termination every time Internal barrel serrations assure good wire contact and maximum tensile strength Metal insulation grip sleeve crimps to wire insulation, providing protection to the crimp joint during high vibration applications Ring tongue design assures a secure connection in high vibration applications
Standard	UL Listed 587H E52164, CSA Certified LR31212, Military QPL AS7928 (MS25036-107)
Sub_Brand	Panduit
Temperature_Rating	221
Type	Insulated
Voltage Rating	600
