Panduit Panduit PN18-4R-3K

Name: Panduit PN18-4R-3K
Brand: Panduit
SKU: 2971313
Price: 0.49 USD
Availability: InStock

Panduit PN18-4R-3K

Kirby Risk #: 2971313

UPC: 07498380617, 074983806171, 00074983806171

Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)

Brand: Panduit

Description

Industry Description

Ring Terminal, nylon insulated, metal sleeve, 22 Â– 18 AWG, #4 stud size.

Modified Industry Description

RING TERMINAL, NYLON INSULATED, 22

AD Description

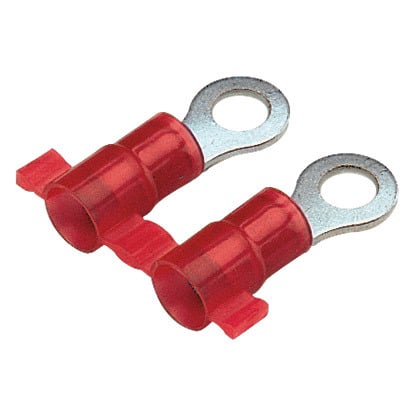

Panduit® Pan-Term® Reel Smart™ PN18-4R-3K PN Series Insulated Ring Terminal, 22 to 18 AWG Conductor, 0.8 in L, Seamed/Sleeved Barrel, Copper, Red

Color	Red
Conductor Type	Solid/Stranded
Connection	Standard
Conductor Size	22 to 18
Country of Origin	MEX
Enclosure	Ring shape
Finish	Tin Plated
Insulation	Nylon
Length1	0.8
Material	Copper
Mounting	7/32" (.2187)
Series	PN Series
Size	#4
Special Features	Continuously molded design provides reliable, consistent performance through the applicator for a high quality termination every time Fork design provides for fast and easy installation, without the need to remove fastener Internal barrel serrations assure good wire contact and maximum tensile strength Metal insulation grip sleeve crimps to wire insulation, providing protection to the crimp joint during high vibration applications
Standard	UL Listed 587H E52164, CSA Certified LR31212
Sub_Brand	Panduit
Temperature_Rating	221
Type	Insulated
Voltage Rating	600
