Panduit Panduit PN10-38R-E

Name: Panduit PN10-38R-E
Brand: Panduit
SKU: 2971214
Price: 1.75 USD
Availability: InStock

Panduit PN10-38R-E

Kirby Risk #: 2971214

UPC: 07498336548, 074983365487, 00074983365487

Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)

Brand: Panduit

Description

Industry Description

Ring Terminal, 12 Â– 10 AWG, 3/8" stud size, nylon insulated, convenience package.

Modified Industry Description

Ring Terminal, nylon insulated, 12

AD Description

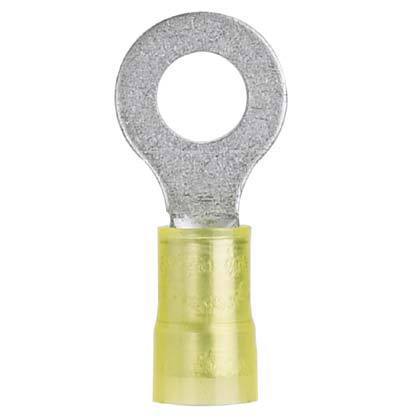

Panduit® PN10-38R-E PN-R Ring Terminal, 12 to 10 AWG Conductor, 1.29 in L, Insulation Grip Sleeve Barrel, Copper, Yellow

Color	Yellow
Connection	Standard
Conductor Size	#10
Country of Origin	MEX
Enclosure	Ring shape
Finish	Tin-Plated
Insulation	Nylon
Material	Copper
Mounting	0.28
Size	3/8
Special Features	Continuously molded design provides reliable, consistent performance through the applicator for a high quality termination every time Internal barrel serrations assure good wire contact and maximum tensile strength Metal insulation grip sleeve crimps to wire insulation, providing protection to the crimp joint during high vibration applications Ring tongue design assures a secure connection in high vibration applications
Standard	UL Listed 587H E52164; CSA Certified LR31212
Sub_Brand	Panduit
Temperature_Rating	221 Degrees Fahrenheit (105 Degrees Celsius)
Type	Ring Terminal
Voltage Rating	600
