Panduit Panduit PLWP1S-D30


Description

Industry Description

Pan-Ty® Locking Wing Mount Push Ties use an all-in-one design to attach bundles to another surface using a stable, secure, rattle-free connection. Plus, with heat stabilized Nylon 6.6 material, it's ideal for temperatures up to 239 degrees. Standard cross section, 5.2in, Tensile Strength: 222, Black, 500pc.

Modified Industry Description

Wing Push Mount Tie, 5.2INL

AD Description

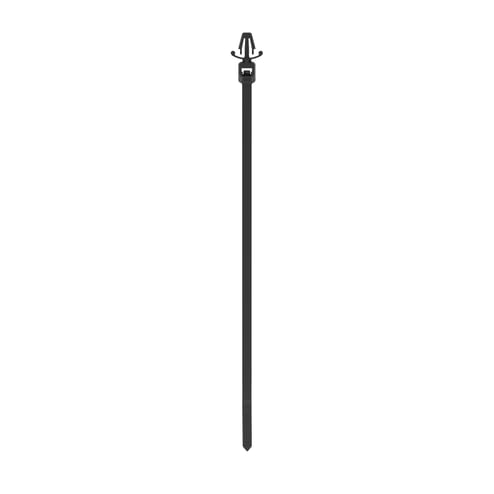

Panduit® Pan-Ty® PLWP1S-D30 Standard Mount Tie, 5.2 in L x 0.19 in W x 0.05 in THK, Nylon 6.6

Specifications

Application
High Temperature
Color
Black
Country of Origin
SGP
Length1
5.2
Material
Nylon
Series
PLWP
Special Features

  • Anchor is easily pressed into a pre-formed hole and locks in place
  • Cable tie, mount and fastener in a single part
  • Curved tip is easy to pickup from flat surfaces and allows faster initial threading to speed installation
  • Heat stabilized nylon 6.6 material
  • Used to attach bundles to another surface such as a flat panel
  • Wings provide constant tension for a stable, secure and rattle-free installation
Standard
UL Compliant 62275, UL Listed #E56854, UL Recognized #E56854
Sub_Brand
Panduit
Temperature_Rating
-76 to 239
Type
Standard
