Panduit Panduit P4-14R-T

Name: Panduit P4-14R-T
Brand: Panduit
SKU: 2969396
Price: 1.43 USD
Availability: InStock

Panduit P4-14R-T

Kirby Risk #: 2969396

UPC: 07498387061, 074983870615, 50074983870610, 00074983870615

Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)

Brand: Panduit

Description

Industry Description

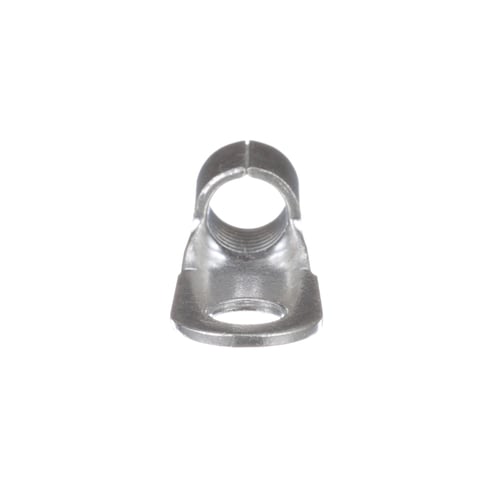

Ring terminal, large wire, 4 AWG, 1/4" stud size, non-insulated, bulk package.

Modified Industry Description

Ring Terminal, large wire,

AD Description

Panduit® Pan-Term® P4-14R-T P Series Loose Piece Non-Insulated Ring Terminal, 4 AWG Conductor, 1.4 in L, Brazed Seam Barrel, Copper, Metallic

Color	Metallic
Conductor Type	Stranded
Connection	Standard
Conductor Size	4
Country of Origin	MEX
Enclosure	Ring shape
Finish	Tin Plated
Insulation	Non-Insulated
Length1	1.4
Material	Copper
Mounting	1/2
Series	P Series
Size	"1/4"""
Special Features	Barrel of terminal internally beveled to provide quick and easy wire insertion Brazed seam protects terminal barrel from splitting during the crimp process Internal barrel serrations assure good wire contact and maximum tensile strength Ring tongue design assures a secure connection in high vibration applications
Standard	cULus Listed 587H E52164, CSA Certified LR31212
Sub_Brand	Pan-Term®
Temperature_Rating	302
Type	Loose Piece Non-Insulated
Voltage Rating	2000
