Panduit Panduit P18-56R-M


Description

Industry Description

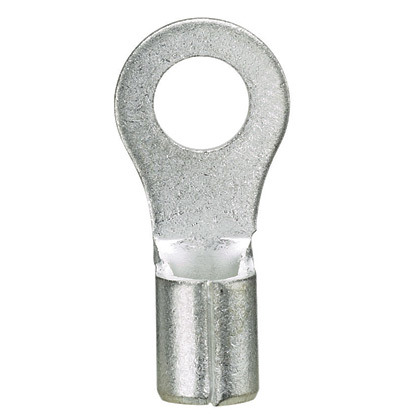

Ring Terminal, 22 – 16 AWG, 5/16" stud size, non-insulated, bulk package.

Modified Industry Description

Ring Terminal, non-insulated, 22 -

AD Description

Panduit® Pan-Term® P18-56R-M P Series Loose Piece Non-Insulated Ring Terminal, 22 to 16 AWG Conductor, 0.91 in L, Brazed Seam Barrel, Copper, Metallic

Specifications

Color
Metallic
Conductor Type
Solid/Stranded
Connection
Standard
Conductor Size
22 to 16
Country of Origin
MEX
Enclosure
Ring shape
Finish
Tin Plated
Insulation
None
Length1
0.91
Material
Copper
Mounting
9/32" (.2812)
Series
P Series
Size
5/16
Special Features

  • Barrel of terminal internally beveled to provide quick and easy wire insertion
  • Brazed seam protects terminal barrel from splitting during the crimp process
  • Internal barrel serrations assure good wire contact and maximum tensile strength
  • Ring tongue design assures a secure connection in high vibration applications
Standard
CT-100, CT-100A, CT-200, CT-570, CT-600-A, CT-1570, CT-2500, CT-160, CT-260
Sub_Brand
Panduit
Temperature_Rating
302
Type
Loose Piece Non-Insulated
Voltage Rating
2000
