Panduit Panduit P12-56HDR-D


Description

Industry Description

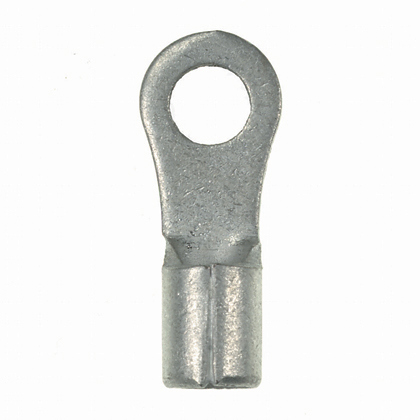

Ring Terminal, 16-12 AWG, 5/16" stud size, heavy duty, non-insulated, bulk package.

Modified Industry Description

Ring Terminal, heavy duty,

AD Description

Panduit® Pan-Term® P12-56HDR-D P-HDR Heavy Duty Loose Piece Non-Insulated Ring Terminal, 16 to 12 AWG Conductor, 0.96 in L, Brazed Seam Barrel, Copper, Metallic

Specifications

Color
Metallic
Conductor Type
Solid/Stranded
Connection
Standard
Conductor Size
16 to 12
Country of Origin
MEX
Enclosure
Ring shape
Finish
Tin Plated
Insulation
None
Length1
0.96
Material
Copper
Mounting
9/32" (.2812)
Series
P-HDR
Size
5/16
Special Features

  • Barrel of terminal internally beveled to provide quick and easy wire insertion
  • Brazed seam protects terminal barrel from splitting during the crimp process
  • Internal barrel serrations assure good wire contact and maximum tensile strength
  • Manufactured from stock 56% thicker than a standard 16 to 14 AWG terminal for use in heavy duty application
  • Ring tongue design assures a secure connection in high vibration applications
Standard
UL Listed 587H E52164, CSA Certified LR31212
Sub_Brand
Panduit
Temperature_Rating
302
Type
Heavy Duty Loose Piece Non-Insulated
Voltage Rating
2000
