Panduit Pan-Net Panduit Pan-Net N8519BC


Description

Industry Description

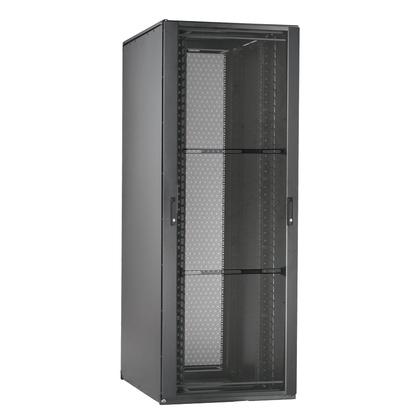

Net-Access™ N-Type Cabinet frame with top panel. Cage nut rails. Dual hinge perforated front door opens to the left or right. Split perforated rear doors open in the middle to minimize door swing footprint. Two sets of cage nut equipment mounting rails. 45 RU cable management on front and rear of front posts. Dimensions: 84.0H x 31.5W x 42.0D (2134mm x 800mm x 1070mm), Two sets of SN25F fingers Included.

Modified Industry Description

800mmW x 45 RU x 1070mmD Net-Access

AD Description

Panduit® Net-Access™ N8519BC Type N Enclosure Cabinet With (1) Top Panel, (9) Side Panel, (1) Cage Nut Rail, 84 in L x 31-1/2 in W x 42 in D, Steel

Vendor Description

Net-Access™ type-N cabinets are the first choice for data center managers and systems integrators specifying high density network, storage and compute applications that require optimal thermal management and the capacity to manage high cable densities. Integral cabinet air seal features and integration with passive hot and cold air containment components drive efficient utilization of cooling capacity and reduce cooling energy consumption. The Net-Access™ inset frame design efficiently manages large quantities of cables and provides space for unmatched access reducing operational costs. This industry leading design also maximizes airflow and provides easy access to equipment for ongoing operational efficiencies, providing exceptional value in a 31-1/2 in W enclosure.

Specifications

Application
NA
Color
Black
Country of Origin
MUL
Finish
Epoxy Coated
Length1
84
Material
Steel
Special Features

  • (2) set of cage nut equipment mounting rails
  • Cabinets and accessories are single point bonded, providing a safe and reliable network while reducing installation costs
  • Cabinets can be ganged together for complete streamlined appearance improving data center aesthetics
  • Cabinets shall include front and rear cable management fingers, the entire cabinet shall be fully electrically bonded, including equipment rails, door and side panels
  • Cabinets shall include front dual hinge doors or single hinge doors with 69% open perforation and rear split doors
  • Cable management included helps speed deployment, easily adjustable rear rails can be quickly repositioned, heavy duty leveling legs can be accessed from top or bottom for faster deployment
  • Creates a 8 in unobstructed channel between cabinets promoting best in class cable management, provides flexibility for switch specific thermal solutions
  • Dual hinge perforated front door opens to the left or right
  • Innovative dual hinge door with slam latch handles provides superior access to cabinets and cabling, easing cabinet to cabinet cabling and promoting faster moves, adds and changes
  • Integral cabinet sealing features reduce bypass air and mixing of cold air and exhaust air within the cabinet for improved thermal efficiency
  • Multiple cabinet configurations for hot aisle/cold aisle, cold aisle containment or vertical exhaust ducting deployments
  • Provides bend radius control for each rack unit and can be positioned where required on cabinet posts for cable protection for increased network availability
  • Provides design flexibility, scalability and improved aesthetics for easier moves, adds and changes
  • Provides optimal and discreet channels for managing and protecting cables contributing to increased network availability
  • Single point bonding locations shall be available at the top and bottom of each cabinet
  • Split perforated rear doors open in the middle to minimize door swing footprint
  • Switch side clearance requirements for increased network reliability and proper thermal management
  • The top of cabinet includes molded edge protection and snap-in covers and pre-installed in cable entry openings to prevent air leakage
  • Welded and assembled steel frame construction
  • Wide range of cabinet designs available for specific thermal applications, resulting in improved thermal efficiencies and reductions in energy expenditures
Standard
EIA-310E
Sub_Brand
Panduit
Type
Type N
