Panduit Panduit LCDN2/0-14A-X

Name: Panduit LCDN2/0-14A-X
Brand: Panduit
SKU: 2966251
Price: 14.92 USD
Availability: InStock

Panduit LCDN2/0-14A-X

Kirby Risk #: 2966251

UPC: 07498344472, 074983444724, 00074983444724

Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)

Brand: Panduit

Description

Industry Description

Two-hole, standard barrel with window, narrow tongue lug, 2/0 AWG wire, 1/4 stud hole, .63 hole spacing.

Modified Industry Description

COPPER COMPRESSION LUG, 2 HOLE, 2/0

AD Description

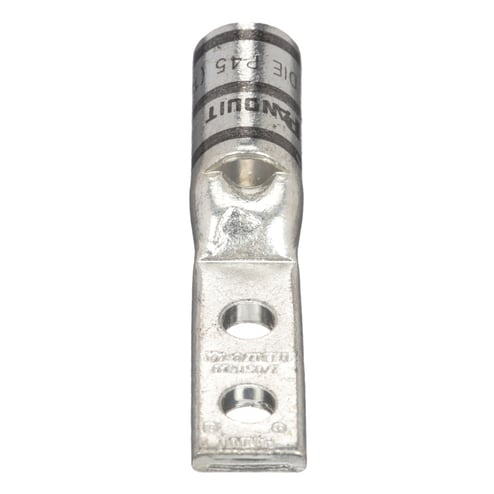

Panduit® Pan-Lug™ LCDN2/0-14A-X 2-Hole Compression Lug, 2/0 AWG Copper Conductor, Die Code: P45, 1/4 in Stud, Tin Plated Copper

Color	Black
Conductor Type	Copper
Conductor Size	2/0
Country of Origin	MEX
Length1	4.7000
Material	Tin Plated Copper
Mounting	1 1/16
Series	LCDN
Size	2/0 Code
Special Features	Color-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection For use with stranded copper conductors Inspection window to visually assure full conductor insertion Narrow tongue width for limited space applications Tin-plated to inhibit corrosion
Standard	CSA certified C22.2 No. 65-13, UL Listed to 486A-486B File #E52164
Sub_Brand	Panduit
Temperature_Rating	90
Type	2-Hole
Voltage Rating	35
