Panduit Panduit LCD600-38DF-6

Name: Panduit LCD600-38DF-6
Brand: Panduit
SKU: 2966220
Price: 57.09 USD
Availability: InStock

Panduit LCD600-38DF-6

Kirby Risk #: 2966220

UPC: 07498389975, 074983899753, 00074983899753

Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)

Brand: Panduit

Description

Industry Description

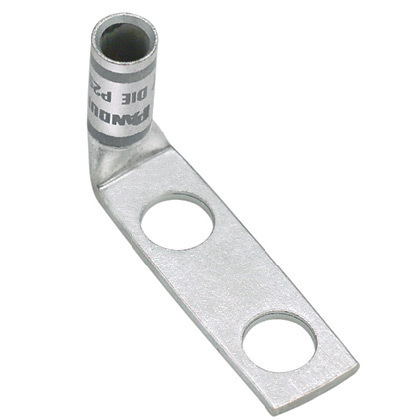

Two-hole, standard barrel lug with window, 600 kcmil cable, 3/8 stud hole, 1 hole spacing, 90Â° angle tongue.

Modified Industry Description

COPPER COMPRESSION LUG, 2 HOLE, 600

AD Description

Panduit® Pan-Lug™ LCD600-38DF-6 2-Hole Lug Compression Connector With Window Lug, 600 kcmil, Die Code: P94, 3/8 in Stud, Tin Plated Copper

Color	Green
Country of Origin	MEX
Material	Tin-Plated Copper
Mounting	1 13/16
Size	600 kcmil Code
Special Features	Color coded barrel Color coded barrels marked with Panduit® and specified competitor die index numbers for proper crimp die selection Inspection window to visually assure full conductor insertion Tin plated to inhibit corrosion
Sub_Brand	Panduit
Type	Tin-Plated Copper Compression Connectors - Lugs
Voltage Rating	35k
