Panduit Panduit LCCX6-38AH-L


Description

Industry Description

Two-hole, flex lug, long barrel, #6 AWG wire, 3/8 stud hole, .63 hole spacing, 45° angle tongue.

Modified Industry Description

COPPER COMPRESSION LUG, 2 HOLE, #6

AD Description

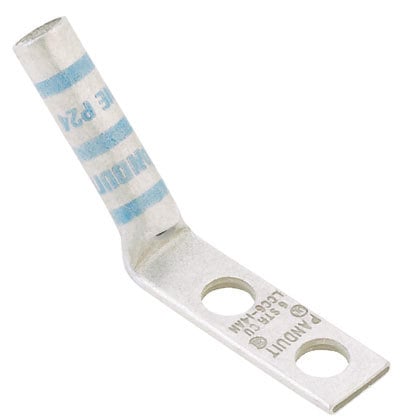

Panduit® Pan-Lug™ LCCX6-38AH-L 2-Hole Lug Compression Connector With Window Lug, 6 AWG Flexible Conductor, Die Code: P24, 3/8 in Stud, Tin Plated Copper

Specifications

Color
Blue
Country of Origin
MEX
Material
Tin-Plated Copper
Mounting
1 1/8
Size
#6 Class B, C, G, H, I, K, M and DLO
Special Features

  • Color coded barrels marked with Panduit® and specified competitor die index numbers for proper crimp die selection
  • Generously beveled wire entry prevents bent back strands when inserting conductor into barrel
  • Inspection window to visually assure full conductor insertion
  • Long barrel maximizes number of crimps and provides premium wire pull out strength and electrical performance
  • Tin plated to inhibit corrosion
Sub_Brand
Panduit
Type
LCCX-H
Voltage Rating
35k
