Panduit Panduit LCCX4-38BF-L


Description

Industry Description

Two-hole, flex lug, long barrel, #4 AWG wire, 3/8 stud hole, .75 hole spacing, 90° angle tongue.

Modified Industry Description

Copper Compression Lug, 2 Hole, #4

AD Description

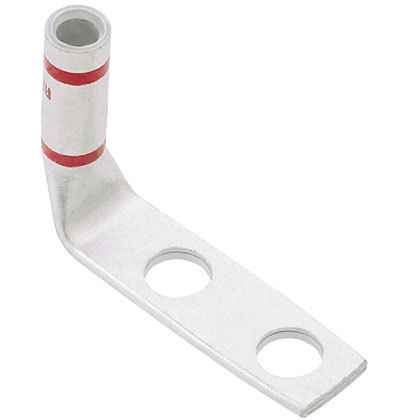

Panduit® Pan-Lug™ LCCX4-38BF-L 2-Hole Lug Compression Connector With Window Lug, 4 AWG/5 to 3 AWG Flexible Conductor, Die Code: P29, 3/8 in Stud, Tin Plated Copper

Specifications

Color
Gray
Country of Origin
MEX
Material
Tin-Plated Copper
Mounting
1 1/8
Size
#4 Class B, C, G, H, I, K, M and #5, #4, #3 DLO
Special Features

  • Color coded barrels marked with Panduit® and specified competitor die index numbers for proper crimp die selection
  • Generously beveled wire entry prevents bent back strands when inserting conductor into barrel
  • Inspection window to visually assure full conductor insertion
  • Long barrel maximizes number of crimps and provides premium wire pull out strength and electrical performance
  • Tin plated to inhibit corrosion
Sub_Brand
Panduit
Type
Type LCCX-F
Voltage Rating
35k
