Panduit Panduit LCCX350-12H-6


Description

Industry Description

Two-hole, flex lug, long barrel, 350 kcmil cable, 1/2 stud hole, 1.75 hole spacing, 45° angle tongue.

Modified Industry Description

Copper Compression Lug, 2 Hole, 350

AD Description

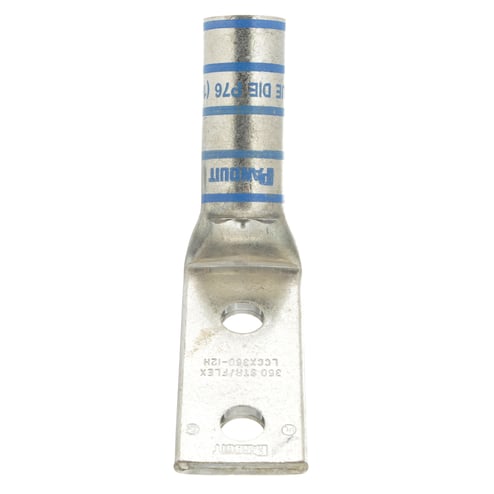

Panduit® Pan-Lug™ LCCX350-12H-6 2-Hole Lug Compression Connector With Window Lug, 350 kcmil/373.7 kcmil Flexible Conductor, Die Code: P76, 1/2 in Stud, Tin Plated Copper

Specifications

Color
Blue
Country of Origin
MEX
Material
Tin-Plated Copper
Mounting
2 9/16
Size
350 kcmil Class G, H, I, K, M and 373.7 kcmil DLO
Special Features

  • Color coded barrels marked with Panduit® and specified competitor die index numbers for proper crimp die selection
  • Generously beveled wire entry prevents bent back strands when inserting conductor into barrel
  • Inspection window to visually assure full conductor insertion
  • Long barrel maximizes number of crimps and provides premium wire pull out strength and electrical performance
  • Tin plated to inhibit corrosion
Sub_Brand
Panduit
Type
LCCX-H
Voltage Rating
35k
