Panduit Panduit LCCF4/0-38D-X

Name: Panduit LCCF4/0-38D-X
Brand: Panduit
SKU: 2965867
Price: 22.42 USD
Availability: InStock

Panduit LCCF4/0-38D-X

Kirby Risk #: 2965867

UPC: 07498375317, 074983753178, 00074983753178

Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)

Brand: Panduit

Description

Industry Description

Two-hole, long flared barrel, 4/0 AWG wire, 3/8 stud hole, 1 hole spacing.

Modified Industry Description

COPPER COMPRESSION LUG, 2 HOLE, 4/0

AD Description

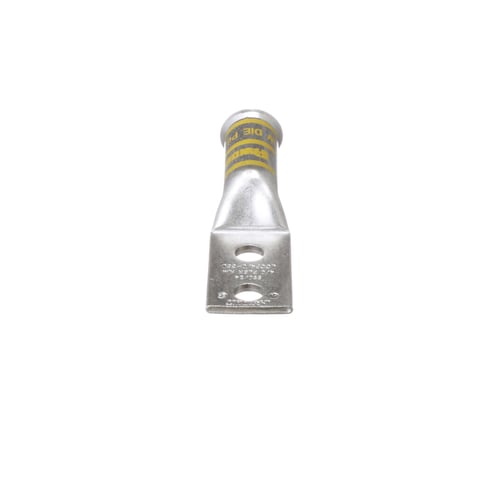

Panduit® Pan-Lug™ LCCF4/0-38D-X 2-Hole Compression Lug, 4/0 AWG Class K, M and DLO Copper Conductor, Die Code P62, 3/8 in Stud, Tin Plated Copper

Color	Yellow
Conductor Type	Copper
Conductor Size	4/0 AWG Class K, M and DLO
Country of Origin	MEX
Length1	5.9000
Material	Tin Plated Copper
Mounting	1 11/16
Series	LCCF
Size	4/0 Class K and M and DLO
Special Features	Can be used with flex conductor class K, M and diesel locomotive Color-coded barrels marked with Panduit die index numbers for proper crimp die selection Enclosed barrel prevents corrosive material from entering barrel when used in harsh environments Flared entry prevents bent back strands when inserting fine strand conductor into barrel For Use with flexible and extra-flexible copper conductors Long barrel maximizes the number of crimps and provides premium wire pull-out strength and electrical performance Tin-plated to inhibit corrosion
Standard	CSA certified C22.2 No. 65-13, UL listed 486A-486B File #E52164
Sub_Brand	Panduit
Temperature_Rating	90
Type	2-Hole
Voltage Rating	35
