Panduit Panduit LCCF350-12H-6


Description

Industry Description

Two-hole, long flared barrel, 350 kcmil cable, 1/2 bolt holes, 1.75 hole spacing, NEMA hole sizes and spacing, 45° angle tongue.

Modified Industry Description

COPPER COMPRESSION LUG, 2 HOLE, 350

AD Description

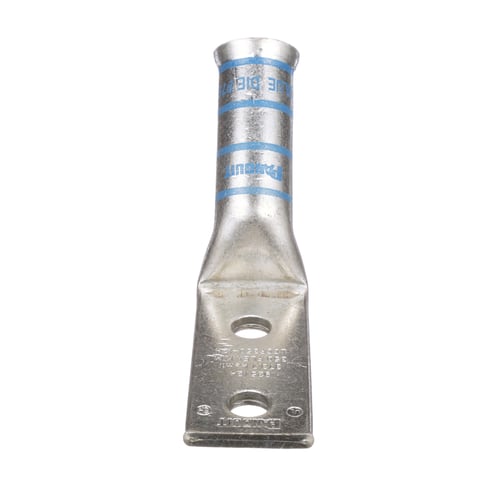

Panduit® Pan-Lug™ LCCF350-12H-6 LCCF-H 2-Hole Compression Lug, 350 kcmil Class K, M and 373.7 kcmil DLO Copper Conductor, Die Code P76, 1/2 in Stud, Tin Plated Copper

Specifications

Amperage Rating
NA
Color
Blue
Conductor Type
Copper
Conductor Size
350 kcmil Class K, M and 373.7 kcmil DLO
Country of Origin
MEX
Material
Tin Plated Copper
Mounting
2 9/16
Series
LCCF-H
Size
350 kcmil Class K and M, 373.7 kcmil DLO
Special Features

  • Can be used with flex conductor class K, M and diesel locomotive
  • Color-coded barrels marked with Panduit die index numbers for proper crimp die selection
  • Enclosed barrel prevents corrosive material from entering barrel when used in harsh environments
  • Flared entry prevents bent back strands when inserting fine strand conductor into barrel
  • For Use with flexible and extra-flexible copper conductors
  • Long barrel maximizes the number of crimps and provides premium wire pull-out strength and electrical performance
  • Tin-plated to inhibit corrosion
Sub_Brand
Panduit
Temperature_Rating
90
Type
2-Hole
Voltage Rating
35
