Panduit Panduit LCC400-38DW-6

Name: Panduit LCC400-38DW-6
Brand: Panduit
SKU: 2965666
Price: 29.25 USD
Availability: InStock

Panduit LCC400-38DW-6

Kirby Risk #: 2965666

UPC: 07498379849, 074983798490, 00074983798490

Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)

Brand: Panduit

Description

Industry Description

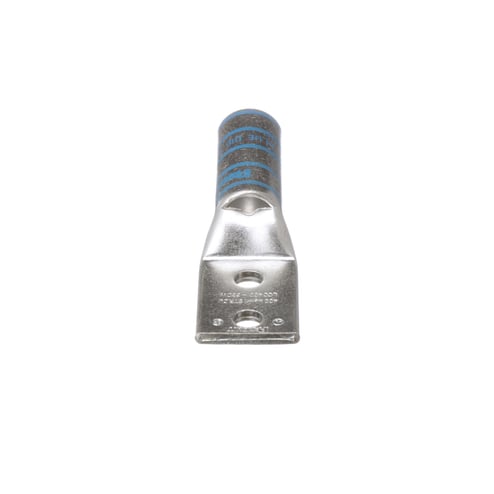

Two-hole, long barrel lug with window, 400 kcmil, 3/8 stud hole, 1 hole spacing.

Modified Industry Description

COPPER COMP. LUG, 2 HOLE, 400

AD Description

Panduit® Pan-Lug™ LCC400-38DW-6 2-Hole Lug Compression Connector, 400 kcmil, Die Code: P76, 3/8 in Stud, Tin Plated Copper

Color	Blue
Country of Origin	MEX
Length1	7.9000
Material	Tin-Plated Copper
Mounting	2 3/8
Size	400 kcmil Code
Special Features	Color coded barrels marked with Panduit® and specified competitor die index numbers for proper crimp die selection Enclosed barrel prevents corrosive material from entering barrel when used in harsh environments Long barrel maximizes number of crimps and provides premium wire pull out strength and electrical performance Tin plated to inhibit corrosion Without inspection window lug
Standard	CSA certified C22.2 No. 65-13, UL Listed to 486A-486B File #E52164, ABS approved, NEBS Level 3
Sub_Brand	Panduit
Type	Tin-Plated Copper Compression Connectors - Lugs
Voltage Rating	35k
