Panduit Panduit LCBX500-38F-6


Description

Industry Description

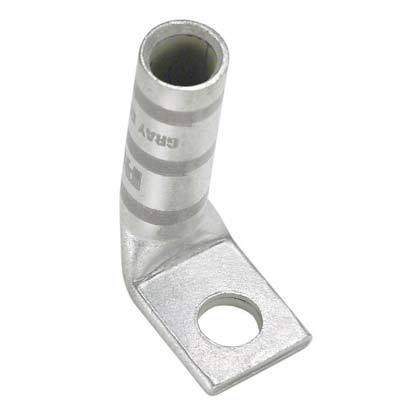

One-hole, flex lug, long barrel, 500 kcmil, 3/8 stud hole, 90° angle tongue.

Modified Industry Description

Copper Compression Lug, 1 Hole, 500

AD Description

Panduit® Pan-Lug™ LCBX500-38F-6 1-Hole Lug Compression Connector With Window Lug, 500 kcmil/535.3 kcmil, Die Code: P99, 3/8 in Stud, Tin Plated Copper

Specifications

Color
Pink
Country of Origin
MEX
Material
Tin-Plated Copper
Mounting
2 15/16
Size
500 kcmil Class G, H, I, K, M and 535.3 kcmil DLO
Special Features

  • Color coded barrel
  • Color coded barrels marked with Panduit® and specified competitor die index numbers for proper crimp die selection
  • Generously beveled wire entry prevents bent back strands when inserting conductor into barrel
  • Inspection window to visually assure full conductor insertion
  • Long barrel maximizes number of crimps and provides premium wire pull out strength and electrical performance
  • Tin plated to inhibit corrosion
Sub_Brand
Panduit
Type
Type LCBX-F
Voltage Rating
35k
