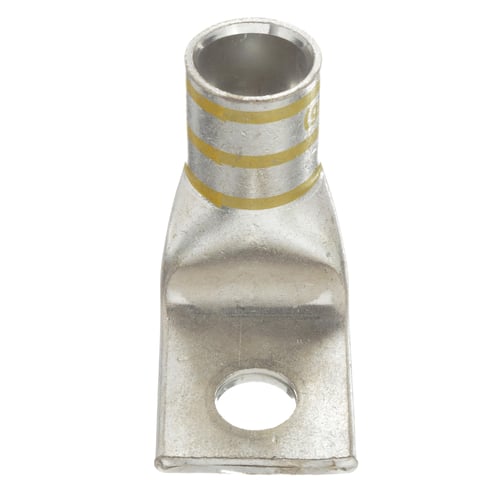

Panduit Panduit LCAX250-12F-X


Description

Industry Description

One-hole, flex lug, 250 kcmil cable, 1/2 stud hole., 90° angle tongue.

Modified Industry Description

Copper Compression Lug, 1 Hole, 250

AD Description

Panduit® Pan-Lug™ LCAX250-12F-X 1-Hole Compression Lug, 250 kcmil Class G, H, I, K, M and 262.6 kcmil DLO Copper Conductor, Die Code: P62, 1/2 in Stud, Tin Plated Copper

Specifications

Color
Yellow
Conductor Type
Copper
Conductor Size
250 kcmil Class G, H, I, K, M and 262.6 kcmil DLO
Country of Origin
MEX
Length1
4.8500
Material
Tin Plated Copper
Mounting
1 1/16
Series
LCAX
Size
250 kcmil Class G, H, I, K, M and 262.6 kcmil DLO
Special Features

  • Can be used with code conductor and flex conductor class G, H, I, K, M and diesel Locomotive
  • Color-coded bands for proper die selection and crimp placement
  • Generously beveled wire entry prevents bent back strands when inserting conductor into barrel
  • Inspection window to assure complete conductor insertion
  • Tin-plated to inhibit corrosion
Standard
C22.2 No. 65-13, 486A-486B File #E52164, ABS approved
Sub_Brand
Panduit
Temperature_Rating
90
Type
1-Hole
Voltage Rating
35
