Panduit Panduit LCAF350-38-6
Panduit LCAF350-38-6
Kirby Risk #: 2964907
UPC: 07498374453, 074983744534, 00074983744534
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Panduit
Description
Industry Description
One-hole, flared barrel, 350 kcmil cable, 3/8 stud hole.
Modified Industry Description
Copper Compression Lug, 1 Hole, 350
AD Description

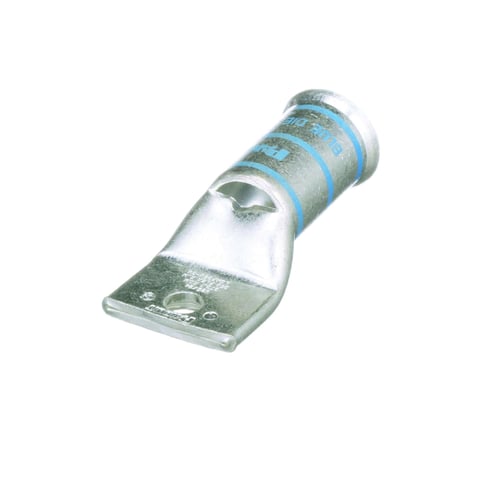

Panduit® Pan-Lug™ LCAF350-38-6 1-Hole Compression Lug, 350 kcmil Class K, M and 373.7 kcmil DLO Copper Conductor, Die Code: P76, 3/8 in Stud, Tin Plated Copper
Specifications
| Color |
Blue
|
|---|---|
| Conductor Type |
Copper
|
| Conductor Size |
350 kcmil Class K, M and 373.7 kcmil DLO
|
| Country of Origin |
MEX
|
| Length1 |
5.8000
|
| Material |
Tin Plated Copper
|
| Mounting |
1 15/16
|
| Series |
LCAF
|
| Size |
350 kcmil Class K and M, 373.7 kcmil DLO
|
| Special Features |
|
| Standard |
UL Listed to 486A-486B File #E52164, NEBS Level 3, ABS
|
| Sub_Brand |
Panduit
|
| Temperature_Rating |
90
|
| Type |
1-Hole
|
| Voltage Rating |
35
|
