Panduit Panduit LCAF3/0-14F-X

Name: Panduit LCAF3/0-14F-X
Brand: Panduit
SKU: 2964881
Price: 14.65 USD
Availability: InStock

Panduit LCAF3/0-14F-X

Kirby Risk #: 2964881

UPC: 07498387710, 074983877102, 00074983877102

Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)

Brand: Panduit

Description

Industry Description

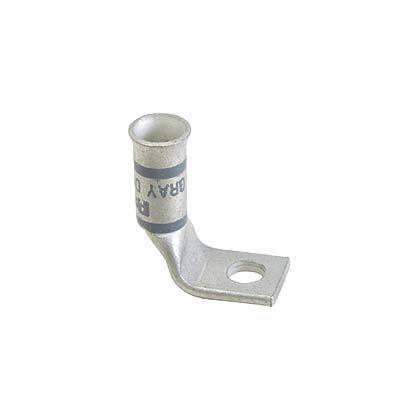

One-hole, flared barrel, 3/0 AWG wire, 1/4 stud hole, 90Â° angle tongue.

Modified Industry Description

Copper Compression Lug, 1 Hole, 3/0

AD Description

Panduit® Pan-Lug™ LCAF3/0-14F-X 1-Hole Lug Compression Connector With Window Lug, 3/0 AWG, Die Code: P54, 1/4 in Stud, Tin Plated Copper

Amperage Rating	NA
Color	Purple
Country of Origin	MEX
Material	Tin-Plated Copper
Mounting	1 7/16
Size	3/0 Class K and M and DLO
Special Features	Color coded barrels marked with Panduit® and specified competitor die index numbers for proper crimp die selection Inspection window to visually assure full conductor insertion Tin plated to inhibit corrosion
Sub_Brand	Panduit
Type	LCAF-F
Voltage Rating	35k
