Panduit Pan-Net Panduit Pan-Net IUTPCH5BLY
Panduit Pan-Net IUTPCH5BLY
Kirby Risk #: 2964450
UPC: 07498305390, 074983053902, 00074983053902
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Panduit Pan-Net
Description
Industry Description

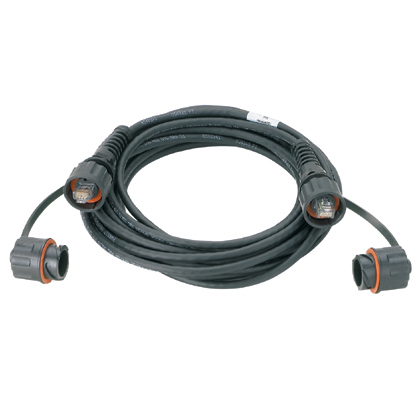

Patch cord constructed of industrial grade UTP Category 5e stranded cable with modular plugs. Includes dust caps, 5 ft.
Modified Industry Description
INDUSTRIALNET CAT 5E UTP PATCH CORD
AD Description
Panduit® IndustrialNet™ TX5e™ IUTPCH5BLY Class D Patch Cord With Plug Cap, Cat 5e, 24 AWG UTP Unshielded Stranded Copper Conductor, RJ45 Modular Plug Connector, 5 ft L Cord
Vendor Description
Industrial Ethernet patch cords shall be constructed of category 5e, industrial grade, stranded, twisted pair cable for UTP and STP installations. each patch cord shall be pre-terminated to include category 5e industrial plugs on each end which are wired according to the T568B standard. Tethered caps shall be available to protect connectivity in un-mated conditions. an IP67 rating shall be achieved when mated with an IP67 industrial grade, bayonet style connector.
Specifications
| Application |
Unshielded
|
|---|---|
| Boot_Type |
Modular Plug
|
| Brand Name |
Panduit Pan-Net
|
| Color |
Black
|
| Conductor Size |
24
|
| Cord_Length |
5
|
| Country of Origin |
CRI
|
| Number Of Conductors |
RJ45 8(8)
|
| Package_Quantity |
1
|
| Plug_Type |
Modular Plug
|
| Special Features |
|
| Standard |
ANSI/TIA-568-C.2 Category 5e and ISO11801 Class D, ANSI/IEC 60529-2004, ANSI/TIA-1096-A, IEC 60603-7, IEC 61076-3-106 variant 1, conforms to ODVA specifications, UL 1581 section 480 and 1200, UL Type 12, IEEE 802.3af and IEEE 802.3at for PoE applications,
|
| Sub_Brand |
Panduit
|
| Temperature_Rating |
-4 to 158
|
| Type |
Class D Unshielded
|
| Width_2 |
7.6000
|
| Width_3 |
7.6000
|
