Panduit Panduit HV9150-C0


Description

Industry Description

Panduit Hyper-VTTM in line cable ties find the perfect balance of strong and flexible. Made with UV- and weather-resistant nylon, they're flexible enough to conform to irregular bundles, while double-sided teeth and a two-wedge locking design add extra locking strength with low threading force. A releasable head makes these in-line cables the ideal solution for temporary locking prior to finalization. Light-heavy cross section, 20.7in, Tensile Strength: 710, black, 100pc.

Modified Industry Description

Cable Tie, In-Line, 20.7INL

AD Description

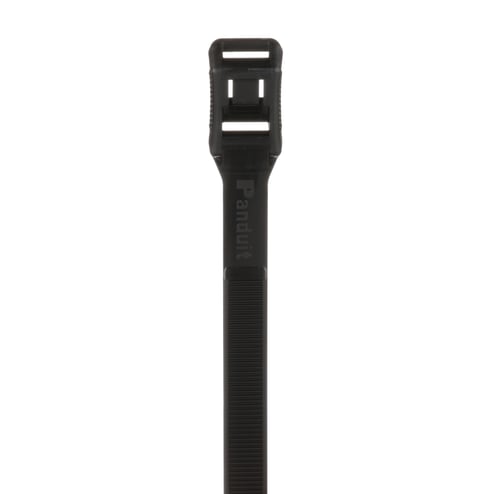

Panduit® Hyper-V™ HV9150-C0 In-Line Light Heavy Cable Tie, 20.7 in L x 0.35 in W x 0.08 in THK, Nylon 6.6, Black

Specifications

Application
General
Color
Black
Country of Origin
CRI
Length1
20.7
Material
Nylon 6.6
Series
HV Series
Special Features

  • Bending serrations on the tip of the tie allow the tip to be easily formed into an arc, enabling installer to fish the tie around the bundle in a confined space
  • Fixed and flexible 2-wedge locking design provides a low threading force
  • In-line tie design for parallel entry of the tie into head resulting in a lower profile on cable bundles
  • Releasable head position for temporary bundling of cables prior to final locking, no need to replace ties when adding cables/wires to the bundle
  • Teeth on both sides of cable tie body provide additional locking strength and improved flexibility to conform to irregular bundle shapes such as securing cables to cable tray systems
  • Teeth on full length of body support a wide range of bundle diameters
  • Threading hole in the tip of the tie allows an installer to hook the tip with a simple device to pull the tie through spaces with limited access
Standard
RoHS Compliant
Sub_Brand
Panduit
Temperature_Rating
-76 to 185
Type
In-Line Light Heavy
