Panduit Panduit GPL-28-X
Panduit GPL-28-X
Kirby Risk #: 2963696
UPC: 07498360500, 074983605002, 00074983605002
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Panduit
Description
Industry Description
Bronze grounding clamp, .365-.575" wire dia. range 1 1/2" IPS.
Modified Industry Description
BRONZE GROUNDING CLAMP, U-BOLT, 2/0
AD Description

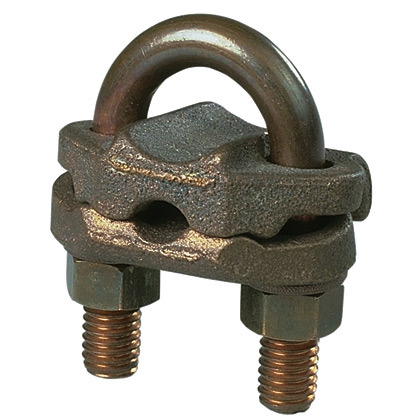

Panduit® StructuredGround™ GPL-28-X Single Cable U-Bolt Grounding Toe Clamp, 0.365 to 0.575 in Conduit, 2/0 AWG to 250 kcmil Conductor, Bronze/Silicon Bronze
Vendor Description
The ability to provide a grounding system that is both reliable and economical is dependent upon finding the right connectors for the application. Panduit® offers grounding connectors for a wide variety of conductor combinations and mounting configurations in high strength electrolytic copper, aluminum and bronze alloy materials. Globally distributed StructuredGround™ mechanical connectors provide fast and easy terminating of ground conductors to water pipe, ground rods, conduit, iron pipe and structural steel for highest reliability and lowest installed cost. With the addition of new ground clamps to the existing line-of StructuredGround™ mechanical connectors, Panduit® delivers the breadth of line to supply the right connector for each unique job, providing maximum reliability and safety for all critical electrical connections throughout your physical infrastructure.
Specifications
| Application |
Used to ground copper conductor parallel or at a right angle to a Rod, tube or pipe.
|
|---|---|
| Color |
Bronze
|
| Conductor Type |
Solid Copper
|
| Conductor Size |
2/0 AWG to 250 kcmil
|
| Country of Origin |
USA
|
| Dimensions |
3.25 in L x 1.88 in W x 4 in H
|
| Finish |
Galvanic/electrolytic zinc plated
|
| Length1 |
9.2000
|
| Material |
Electrolytic Bronze
|
| Series |
GPL
|
| Special Features |
|
| Standard |
cULus Listed 467, DB Rated
|
| Sub_Brand |
Panduit
|
| Type |
U-Bolt
|
