Panduit Panduit FRIVRA4X4BL
Panduit FRIVRA4X4BL
Kirby Risk #: 2955957
UPC: 07498334484, 074983344840, 00074983344840
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Panduit
Description
Industry Description

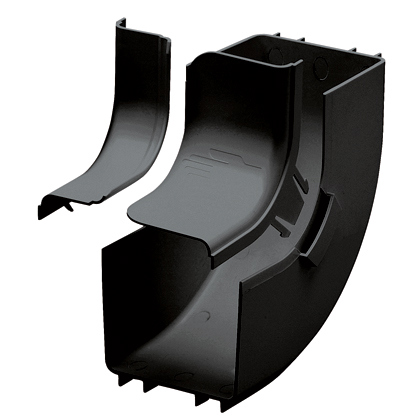

Attaches to 4x4 channel and/or fittings to create a 90° upward angle from a straight horizontal run. Used with outside vertical 90° angle fitting FROVRA4X4BL to change level of a straight horizontal run. Includes split cover.
Modified Industry Description
Fitting and Cover, Inside Vertical
AD Description
Panduit® FiberRunner® FRIVRA4X4BL Inside Vertical Right Angle Fitting, 8.64 in L, 5.15 in H Side Rail, 90 deg Bend, ABS
Vendor Description
The 4 x 4 routing system shall be a system of channel, fittings and brackets designed to segregate, route and protect fiber optic and high performance copper cabling. Channel and fittings shall be assembled using pre-assembled couplers. A selection of spillout options shall be available that easily attach using the vertical tee. Fittings maintain a minimum 2 in bend radius to protect against signal loss due to excessive cable bends. Available system colors shall be yellow, orange and black. A full complement of brackets shall be available for attaching system components to ladder rack, threaded rod, auxiliary framing, strut, equipment racks, cabinets and raised floor pedestals.
Specifications
| Application |
(1) Designed to Segregate, Route, and Protect Fiber Optic and High Performance Copper Cabling (2) It is Suited for Data Center Applications where Cable is Routed from Distribution Areas to Equipment Cabinets or Racks (3) It is Used in Telco Central Office
|
|---|---|
| Country of Origin |
USA
|
| Length1 |
9.4000
|
| Material |
ABS
|
| Special Features |
|
| Standard |
UL Listed to 2024A Optical Fiber Cable Routing Assemblies, Compliant with the applicable tests in Telcordia GR-63-CORE Network Equipment Building Systems Level 3, RoHS Compliant
|
| Sub_Brand |
Panduit
|
| Type |
Inside Vertical 90°
|
