Panduit Panduit FR6CS58
Panduit FR6CS58
Kirby Risk #: 2955802
UPC: 07498383973, 074983839735, 00074983839735
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Panduit
Description
Industry Description
Used to support the 6x4 and 4x4 systems from below with new threaded rod. Bracket is secured to threaded rod with two nuts. The pre-assembled slide clamps enable fast assembly to channel. Use 7/16in nut driver on slide clamps. Also can be secured directly to the top of cabinets, For 5/8in threaded rod.
Modified Industry Description
Bracket, 5/8IN Thr. Rod Center
AD Description

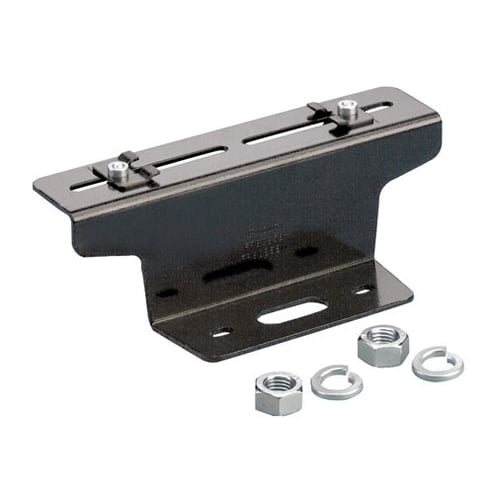

Panduit® FiberRunner® QuikLock™ FR6CS58 Center Support Bracket, For Use With FiberRunner® 6 x 4 in and 4 x 4 in Routing System, 5/8 in Threaded Rod, Steel, Black
Specifications
| Application |
(1) The Fiberrunner 6X4 Routing System is a System of Channel, Fittings and Brackets Designed to Segregate, Route, and Protect Fiber Optic and High PerformanceCopper Cabling. (2) it is Suited for Data Center Applications
|
|---|---|
| Country of Origin |
USA
|
| Length1 |
10.9000
|
| Material |
Steel
|
| Special Features |
|
| Standard |
UL Listed to 2024 Optical Fiber Cable Routing Assemblies, Compliant with the Applicable Tests in Telcordia Gr-63-Core, Network Equipment Building Systems Level 3, LP-CSISPEC-FR
|
| Sub_Brand |
Panduit
|
| Type |
4 x 4 and 6 x 4 FiberRunner Brackets
|
