Panduit Panduit FOPPZ24Y


Description

Industry Description

50um OM4 24 Fiber Indoor Armored Cable, Plenum (OFCP), 900um Buffered Fibers

Modified Industry Description

24-fiber OM4 10 GbE OFNP (plenum)

AD Description

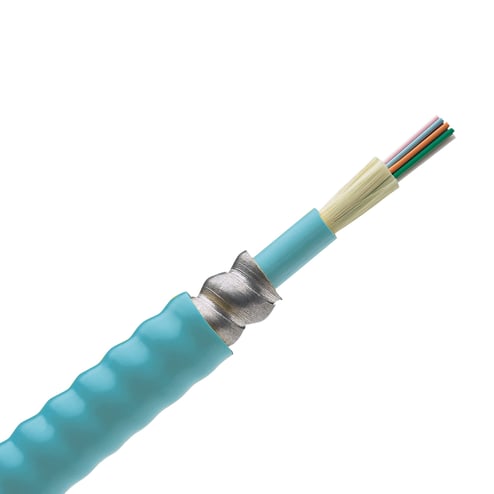

Panduit® Opti-Core® FOPPZ24Y Interlocking Armored Cable, 24 Fiber

Vendor Description

Panduit® Opti-Core® Fiber Optic Indoor Interlocking Armored Cable is an integral part of the Panduit end-to-end fiber optic solution, designed to support today's data needs while meeting tomorrow's ever-advancing network requirements. Opti-Core® Fiber Optic Indoor Interlocking Armored Cable is used within buildings to provide high-density connectivity and ease of installation.

Specifications

Application
Inside
Color
Aqua
Connection
NA
Country of Origin
USA
Length1
44.0000
Special Features

  • 0.583 in bend radius
  • 0.73 in OD cable
  • 150 lb tensile strength
  • Interlocking aluminum armor eliminates the need for inner duct or conduit to provide a smaller crush resistant pathway for improved design flexibility and lower installed cost
  • OM4 10 GbE 50/125m fiber size
  • OM4 10 GbE multimode plenum rated indoor interlocking aluminum armored cable
  • Opti-Core® 10Gig™ fiber optic indoor interlocking armored cable features the highest quality OM3 and OM4 laser optimized fiber to support 10 Gb/s applications while maintaining compatibility with existing 50um multimode systems
Standard
UL-1666, NFPA 262ANSI/ICEA S-83-596, CSA 22.2, Telcordia GR-409, RoHS Compliant
Sub_Brand
Opti-Core®
Temperature_Rating
-40 to 167
Type
Interlocking
