Panduit Panduit FODPX12Y


Description

Industry Description

50um OM3 12 Fiber Indoor Distribution Cable, Plenum (OFNP), 900um Buffered Fibers

Modified Industry Description

12-fiber OM3 10 GbE OFNP (plenum)

AD Description

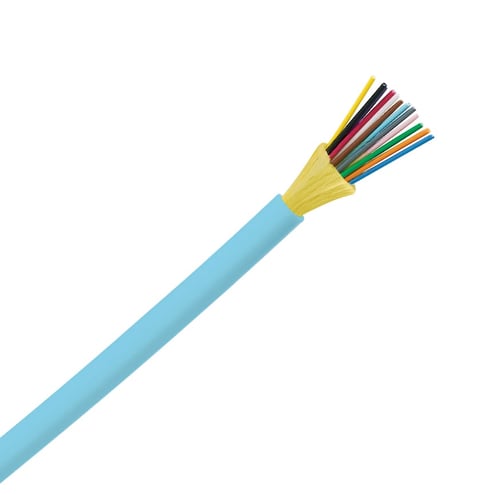

Panduit® Opti-Core® FODPX12Y Multi-Mode (OM3) Distribution Cable, 12 Fiber

Vendor Description

Opti-Core® Fiber Optic Distribution Cable is an integral part of the Panduit end-to-end fiber optic solution, designed to support today's data needs while meeting tomorrow's ever advancing network requirements. Opti-Core® Fiber Optic Distribution Cable is used within buildings to provide high-density connectivity and ease of installation. Applications include intra building backbones, routing between telecommunications rooms and connectorized cables in riser and plenum environments.

Specifications

Application
Inside
Color
Aqua
Connection
NA
Country of Origin
USA
Special Features

  • 0.23 in OD cable
  • 100 lb tensile strength
  • 4.8 in bend radius
  • 900 um standards-based color-coded buffer coating protects fibers during handling and allows for easy identification and stripping
  • Backward compatible for use with all 50/125um system requirements
  • Cable design and flexible buffer tubes allow for quick breakout and ease of routing
  • Multimode plenum rated distribution cable
  • OM4 10 GbE 50/125m fiber size
  • Opti-Core® 10Gig™ fiber optic cable is designed to support network transmission speeds up to 10 Gb/s for link lengths up to 300 meters for OM3 and up to 550 meters for OM4 with an 850nm source per IEEE 802.3ae 10 GbE standard
  • Sheath markings provide positive identification, quality traceability and length verification
Standard
RoHS Compliant; UL-1666; NFPA 262; ANSI/ICEA S-83-596;CSA 22.2; Telcordia GR-409; TIA-492AAAB; TIA-492AAAC; TIA-492AAAD; IEC 60793-2-10
Sub_Brand
Opti-Core®
Temperature_Rating
-4 to 158
Type
Multi-Mode (OM3)
