Panduit Pan-Net Panduit Pan-Net FOCRX06Y


Description

Industry Description

50um OM3 6 Fiber Indoor-Outdoor Central Tube Cable, Riser (OFNR), 250um Fibers

Modified Industry Description

6-Fiber OM3 10 GbE Multimode Riser

AD Description

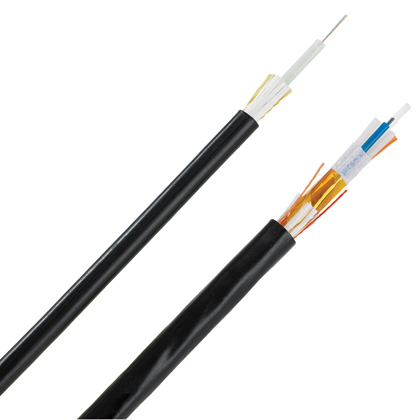

Panduit® Opti-Core® FOCRX06Y Gel-Free Multi-Mode (OM3) Dielectric Cable, 6 Fiber

Vendor Description

Opti-Core® Gel-Free Indoor/Outdoor Cable is an integral part of the Panduit end-to-end fiber optic solution, designed to support today's data needs while meeting tomorrow's ever-advancing network requirements. This riser rated or plenum rated cable provides UV resistance, water-blocking, high density and easy installation in transitional aerial and duct applications and entrance facilities. Opti-Core® Gel-Free Indoor/Outdoor Cable is tested in accordance with Telcordia GR-20, Issue 2, GR-409 and with relevant EIA/TIA-455 series FOTPs for fiber optic cables. Opti-Core® 10Gig Gel-Free Indoor/ Outdoor Cable features the highest quality OM3 laser optimized fiber to support 10 Gb/s applications while maintaining compatibility with existing 50 um multimode systems. Standard RoHS multimode and singlemode indoor/outdoor cables are available in 2, 4, 6 and 12 fiber and 12-fiber counts in a "central loose tube" design and in 24, 36, 48, 72, 96 and 144-fiber counts in a "stranded loose tube" design.

Specifications

Application
Inside/outside
Color
Black
Connection
NA
Country of Origin
USA
Length1
38.0000
Special Features

  • 0.256 in bend radius
  • 0.31 in OD cable
  • 10 GbE 50/125um fiber size
  • 300 lb tensile strength
  • All-dielectric cable construction requires no grounding or bonding
  • Allows installation using loose tube cable methods within buildings and outdoor environments for transitional aerial and duct applications, and in entrance facilities that require riser (OFNR) or plenum (OFNP) rated cable
  • Dry water-blocking technology allows rapid cable preparation and termination for lower termination costs and time (no messy gel required)
  • Eliminates the need for building entrance transition point
  • Riser flame rating
  • Sheath markings provide positive identification, quality traceability, length verification and stranded tube design
  • UV resistant cable sheathing meets the light absorption requirement defined by telcordia GR-20, issue 2 to withstand harsh outdoor environmental demands
Standard
TIA/EIA- 568, ANSI/ICEA S-83-596, Telcordia GR-409, CSA 22.2 No. 230, Telcordia GR-20, ANSI/ICEA S-104-696, RoHS Compliant, UL-1666, NFPA 262
Sub_Brand
Opti-Core®
Temperature_Rating
-40 to 158
Type
Gel-Free Multi-Mode (OM3)
