Panduit Pan-Net Panduit Pan-Net FI2D204-050M


Description

Industry Description

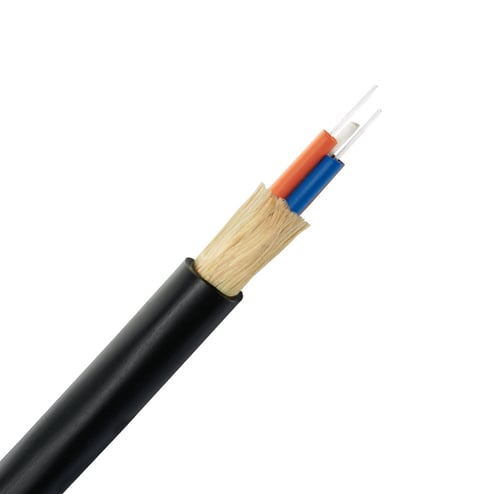

4-fiber OM2 50/200/230µm PCF (polymer coated fiber) multimode low smoke zero halogen (LSZH)-riser(OFNR) rated indoor breakout cable - 50m

Modified Industry Description

OM2 4-FIBER 50/200/230 M PCF

AD Description

Panduit® Opti-Core® IndustrialNet™ FI2D204-050M Multi-Mode (OM2) Indoor Cable, 4 Fiber, 50 m Reel L

Vendor Description

Opti-Core® IndustrialNet™ Polymer Coated Fiber (PCF) Cables are designed with technicians in mind and are ideal for installation in harsh, industrial environments. Large diameter, high strength, highly durable graded-index PCF cables are suitable for applications that demand high mechanical integrity and reliability and are easy to prepare and terminate using hand-held tools. Training takes minutes so it's suitable for electricians lacking experience with fiber optic networks.

Specifications

Application
Inside
Color
Orange
Country of Origin
USA
Length1
50 m Reel
Special Features

  • <= 5.0 dB/km at 850 nm, <= 3.0 dB/km at 1300 nm attenuation
  • 4.45 in bend radius
  • 8 mm cable outside diameter
  • 90 lb tensile strength
  • All Opti-Core® IndustrialNet™ polymer coated fiber cables are factory tested to deliver verified optical performance and reliability for improved network integrity
  • Multimode low smoke zero halogen (LSZH)-riser (OFNR) rated indoor/outdoor breakout cable
  • OM2 50/125m fiber size
  • Provides 1 Gb/s network performance up to 275 meters using OM1 fiber, and up to 550 meters using OM2 fiber per IEEE 802.3z 1 GbE standard
  • This riser rated cable is also compliant with low smoke zero halogen requirements, and provides easy installation in utility control rooms, factory automation environments and manufacturing floors
  • UV-resistance and water-blocking capability makes this cable suitable for use outdoors as well as indoors
Sub_Brand
Panduit
Temperature_Rating
-20 to 105
Type
Multi-Mode (OM2)
