Panduit Panduit DV18-250MB-MY
Panduit DV18-250MB-MY
Kirby Risk #: 2943559
UPC: 07498341028, 074983410286, 50074983410281, 00074983410286
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Panduit
Description
Industry Description

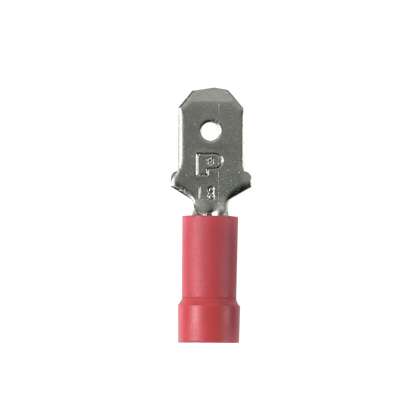

The vibration resistant male disconnect is made of copper and is nickel-plated. It is barrel insulated in red vinyl housing. It has a tab size of 0.250 x 0.032" (6.3 x 0.8 mm) and supports a wire range of 22-18 AWG (0.5-1.0 mm²). It is 0.98" (24.9 mm) long and 0.25" (6.4 mm) wide. The disconnect has a funnel entry barrel configuration and a butted seam barrel. It comes in boxes of 1000.
Modified Industry Description
Male Disconnect, vinyl barrel
AD Description
Panduit® Pan-Term® DV18-250MB-MY DV-MB Insulated Loose Piece Vibration-Resistant Male Tab Disconnect, 22 to 18 AWG Conductor, 0.25 in W x 0.032 in THK Tab, Butted Seam/Funnel Entry Barrel, Brass/Copper, Red
Specifications
| Color |
Red
|
|---|---|
| Conductor Type |
Stranded
|
| Connection |
Funnel Entry
|
| Conductor Size |
22 to 18
|
| Country of Origin |
MEX
|
| Dimensions |
0.98 in L x 0.25 in W
|
| Finish |
Nickel Plated
|
| Insulation |
PVC
|
| Length1 |
7.1000
|
| Material |
Brass/Copper
|
| Mounting |
1932-09-01
|
| Series |
DV-MB
|
| Special Features |
|
| Standard |
UL 310 Listed, UL Listed 20H3 E78522; CSA Certified LR31212, C22.2 No.153
|
| Sub_Brand |
Pan-Term?®
|
| Temperature_Rating |
221
|
| Type |
Insulated Loose Piece Vibration Resistant
|
| Voltage Rating |
600
|
