Panduit Panduit DV18-205B-3K


Description

Industry Description

The vibration resistant female disconnect is made of brass and is tin-plated. It is barrel insulated in red vinyl housing. It has a tab size of 0.187/0.205 x 0.032" (4.8/5.2 x 0.8 mm) and supports a wire range of 22-18 AWG (0.5-1.0 mm²). It is 0.77" (19.6 mm) long and 0.25" (6.4 mm) wide. The disconnect has a funnel entry barrel configuration and a butted seam barrel. It comes in reels of 3000.

Modified Industry Description

Female Disconnect, vinyl barrel

AD Description

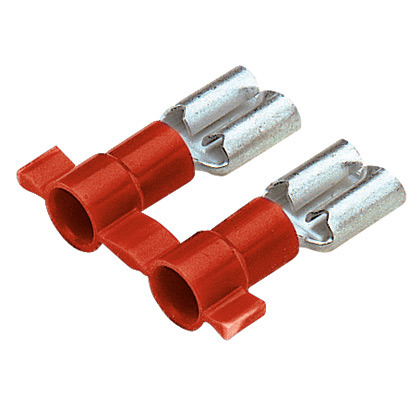

Panduit® Reel Smart™ DV18-205B-3K Female Disconnect, 22 to 18 AWG Conductor, 0.187/0.205 in W x 0.032 in THK Tab, Butted Seam Barrel, Brass, Red, Insulated

Specifications

Color
Red
Connection
Funnel Entry
Conductor Size
22 - 18 AWG
Country of Origin
MEX
Finish
Tinned
Insulation
Vinyl - Barrel Insulated
Length1
26.1000
Material
Brass
Mounting
1932-09-01
Special Features

  • Continuously molded design provides reliable, consistent performance through the applicator for a high quality termination every time
  • Disconnect can be inserted and removed from the male tab without the use of tools for lower installed cost
  • Internal barrel serrations assure good wire contact and maximum tensile strength
  • Internal wire stop assures proper length of insertion into terminal barrel, providing a higher quality connection
Standard
UL 310 Listed
Sub_Brand
Panduit
Temperature_Rating
221 Degrees Fahrenheit (105 Degrees Celsius)
Type
Disconnects on Reel
Voltage Rating
600
