Panduit Panduit DPF18-250FIMB-K


Description

Industry Description

The vibration resistant male disconnect is made of brass and is nickel-plated. It is fully insulated in red premium nylon oversized housing. It has a tab size of 0.250 x 0.032" (6.3 x 0.8 mm) and supports a wire range of 22-18 AWG (0.5-1.0 mm²). It is 0.92" (23.4 mm) long and 0.46" (11.7 mm) wide. The disconnect has a funnel entry barrel configuration and a butted seam barrel. It comes in reels of 1000.

Modified Industry Description

Male Disconnect, premium nylon

AD Description

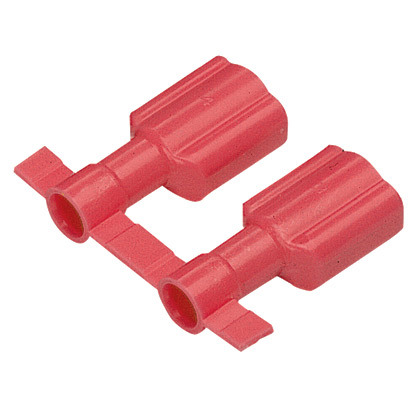

Panduit® Reel Smart™ DPF18-250FIMB-K DPF-FIMB Fully Insulated Vibration Resistant Male Disconnect, 22 to 18 AWG Conductor, 0.25 in W x 0.032 in THK Tab, Butted Seam/Funnel Entry Barrel, Brass/Copper, Red

Specifications

Color
Red
Connection
Funnel Entry
Conductor Size
22 - 18 AWG
Country of Origin
MEX
Finish
Nickel
Insulation
Premium Nylon - Fully Insulated
Length1
26.1000
Material
Brass
Mounting
1932-09-01
Special Features

  • Continuously molded design provides reliable, consistent performance through the applicator for a high quality termination every time
  • Disconnect can be inserted and removed from the male tab without the use of tools for lower installed cost
  • Fully insulated design provides protection from electrical shorts
  • Internal wire stop assures proper length of insertion into terminal barrel, providing a higher quality connection
  • Oversized housing designed for maximum versatility to mate with most commercially available fully insulated female disconnects
  • Premium nylon insulation retains its shape when crimped and provides a tight grip around the wire insulation for maximum strain relief
Standard
UL 310 Listed
Sub_Brand
Panduit
Temperature_Rating
221
Type
Disconnects on Reel
Voltage Rating
600
