Panduit Panduit DPF14-250FIB-M


Description

Industry Description

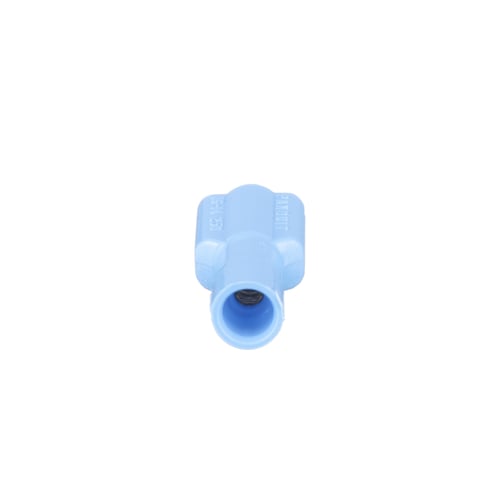

The vibration resistant DiscoGrip™ female disconnect is made of brass and is tin-plated. It is fully insulated in blue premium nylon housing. It has a tab size of 0.250 x 0.032" (6.3 x 0.8 mm) and supports a wire range of 16-14 AWG (1.5-2.5 mm²). It is 0.84" (21.3 mm) long and 0.33" (8.4 mm) wide. The disconnect has a funnel entry barrel configuration and a butted seam barrel. It comes in boxes of 1000.

Modified Industry Description

Female Disconnect, premium nylon

AD Description

Panduit® DiscoGrip™ DPF14-250FIB-M Vibration-Resistant Female Disconnect, 16 to 14 AWG Conductor, 0.25 in W x 0.032 in THK Tab, Butted Seam Barrel, Brass, Blue, Fully Insulated

Specifications

Color
Blue
Conductor Type
Stranded
Connection
Funnel Entry
Conductor Size
16 to 14
Country of Origin
MEX
Dimensions
0.84 in L x 0.35 in W x 0.22 in H
Finish
Tin Plated
Insulation
Premium Nylon
Length1
9.1000
Material
Brass
Mounting
1932-09-01
Series
DPF-FIB
Special Features

  • Disconnect can be inserted and removed from the male tab without the use of tools for lower installed cost
  • Fully insulated design provides protection from electrical shorts
  • Internal wire stop assures proper length of insertion into terminal barrel, providing a higher quality connection
  • Premium nylon insulation retains its shape when crimped and provides a tight grip around the wire insulation for maximum strain relief
Standard
UL 310 Listed, UL Listed 20H3 E78522; CSA Certified LR31212, C22.2 No.153
Sub_Brand
Disco-Grip?„?
Temperature_Rating
221
Type
Fully Insulated Loose Piece Vibration Resistant
Voltage Rating
600
