Panduit Panduit DPF14-205FIB-3K


Description

Industry Description

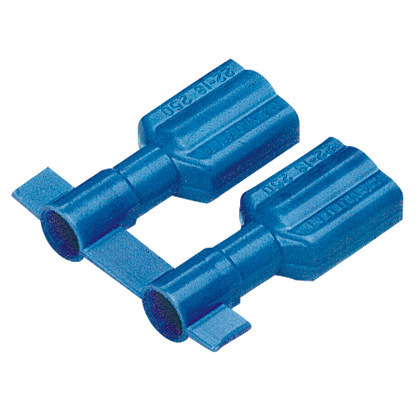

The vibration resistant female disconnect is made of brass and is tin-plated. It is fully insulated in blue premium nylon housing. It has a tab size of 0.187/0.205 x 0.032" (4.8/5.2 x 0.8 mm) and supports a wire range of 16-14 AWG (1.5-2.5 mm²). It is 0.78" (19.8 mm) long and 0.31" (7.9 mm) wide. The disconnect has a funnel entry barrel configuration and a butted seam barrel. It comes in reels of 3000.

Modified Industry Description

Female Disconnect, premium nylon

AD Description

Panduit® Reel Smart™ DPF14-205FIB-3K Female Disconnect, 16 to 14 AWG Conductor, 0.187/0.205 in W x 0.032 in THK Tab, Butted Seam Barrel, Brass, Blue, Insulated

Specifications

Color
Blue
Connection
Funnel Entry
Conductor Size
16 - 14 AWG
Country of Origin
MEX
Finish
Tinned
Insulation
Premium Nylon - Fully Insulated
Length1
26.1000
Material
Brass
Mounting
1932-09-01
Special Features

  • Continuously molded design provides reliable, consistent performance through the applicator for a high quality termination every time
  • Disconnect can be inserted and removed from the male tab without the use of tools for lower installed cost
  • Fully insulated design provides protection from electrical shorts
  • Internal wire stop assures proper length of insertion into terminal barrel, providing a higher quality connection
  • Premium nylon insulation retains its shape when crimped and provides a tight grip around the wire insulation for maximum strain relief
Standard
UL 310 Listed
Sub_Brand
Panduit
Temperature_Rating
221 Degrees Fahrenheit (105 Degrees Celsius)
Type
Disconnects on Reel
Voltage Rating
600
