Panduit Panduit DNG18-250FB-L


Description

Industry Description

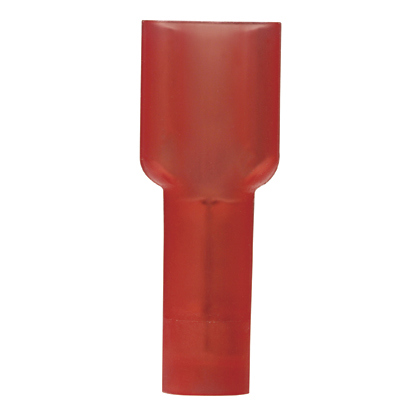

The Supra-Grip™ female disconnect is made of brass and is tin-plated. It is fully insulated in red nylon. It has a tab size of 0.250 x 0.032 (6.3 x 0.8 mm) and supports a wire range of 22-18 AWG (0.5-1.0 mm²). It is 0.93" (23.6 mm) long and 0.35" (8.9 mm) wide. The disconnect has a double crimp funnel entry barrel configuration and a butted seam barrel with an integrated metal insulation grip. It comes in bottles of 50.

Modified Industry Description

Supra-Grip™ Female Disconnect, Double Crimp, Nylon Fully Insulated, 22 - 18 AWG, .250 IN x .032 IN Tab

AD Description

Panduit® Pan-Term® Supra-Grip™ DNG18-250FB-L Female Disconnect, 22 to 18 AWG Conductor, 0.25 in W x 0.032 in THK Tab, Butted Seam/Flared Barrel, Brass, Red, Fully Insulated

Specifications

Color
Red
Conductor Type
Stranded
Connection
Funnel Entry - Double Crimp
Conductor Size
22 to 18
Country of Origin
MEX
Dimensions
0.93 in L x 0.35 in W x 0.22 in H
Finish
Tin Plated
Insulation
Nylon - Fully Insulated
Length1
9.3000
Material
Brass
Mounting
0.28
Series
DNG-FB
Special Features

  • Disconnect can be inserted and removed from the male tab without the use of tools for lower installed cost
  • Flared barrel extension integrated into stamping to provide insulation grip for double crimp requirements
  • Fully insulated design provides protection from electrical shorts
  • Internal barrel serrations assure good wire contact and maximum tensile strength
  • Internal wire stop assures proper length of insertion into terminal barrel, providing a higher quality connection
  • Mates with DNF-FIMB family
  • The disconnect has a double crimp funnel entry barrel configuration and a butted seam barrel with an integrated metal insulation grip
Standard
UL 310 Listed
Sub_Brand
Panduit
Temperature_Rating
221
Type
Fully Insulated Loose Piece
Voltage Rating
600
