Panduit Panduit DNFR18206FIB-KD


Description

Industry Description

The vibration resistant, right angle style female disconnect is made of brass and is tin-plated. It is fully insulated in red nylon. It has a tab size of 0.187/0.205 x 0.020 (4.8/5.2 x 0.5 mm) and supports a wire range of 22-18 AWG (0.5-1.0 mm²). It is 0.57" (14.5 mm) long, 0.37" (9.4 mm) wide, and has a depth of 0.60" (15.2 mm). The disconnect has a funnel entry configuration with insulation support and a butted seam barrel. It comes in reels of 1500 pieces.

Modified Industry Description

Female Disconnect, right angle,

AD Description

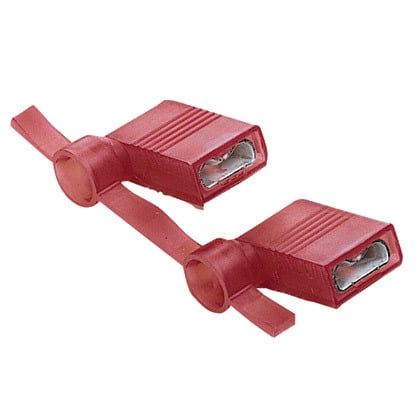

Panduit® Reel Smart™ DNFR18206FIB-KD Vibration-Resistant Female Disconnect, 22 to 18 AWG Conductor, 0.187/0.205 in W x 0.02 in THK Tab, Butted Seam Barrel, Brass, Red, Fully Insulated

Specifications

Color
Red
Conductor Type
Stranded
Connection
Funnel Entry
Conductor Size
22 to 18
Country of Origin
MEX
Dimensions
0.57 in L x 0.37 in W x 0.6 in D
Finish
Tin Plated
Insulation
Nylon - Fully Insulated
Length1
26.1000
Material
Brass
Mounting
11/32
Series
DNFR-FIB
Special Features

  • Continuously molded design provides reliable, consistent performance through the applicator for a high quality termination every time
  • Disconnect can be inserted and removed from the male tab without the use of tools for lower installed cost
  • Fully insulated design provides protection from electrical shorts
  • Internal wire stop assures proper length of insertion into terminal barrel, providing a higher quality connection
  • Right angle design for use in limited space applications
Standard
UL 310 Listed
Sub_Brand
Panduit
Temperature_Rating
221
Type
Fully Insulated Vibration Resistant
Voltage Rating
600
