Panduit Panduit DNF18-250FIB-E
Panduit DNF18-250FIB-E
Kirby Risk #: 2943398
UPC: 07498334196, 074983341962, 00074983341962
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Panduit
Description
Industry Description

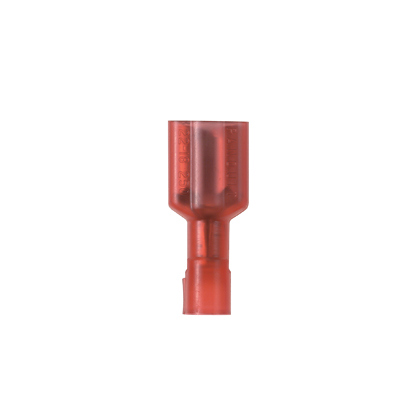

The vibration resistant female disconnect is made of brass and is tin-plated. It is fully insulated in a red, nylon housing. It has a tab size of 0.250 x 0.032" (6.3 x 0.8 mm) and supports a wire range of 22-18 AWG (0.5-1.0 mm²). It is 0.84" (21.3 mm) long and 0.35" (8.9 mm) wide. The disconnect has a funnel entry barrel configuration and a butted seam barrel. It comes in bags of 20.
Modified Industry Description
Female Disconnect, nylon fully
AD Description
Panduit® Pan-Term® DNF18-250FIB-E Vibration-Resistant Female Disconnect, 22 to 18 AWG Conductor, 0.25 in W x 0.032 in THK Tab, Butted Seam Barrel, Brass, Red, Fully Insulated
Specifications
| Color |
Red
|
|---|---|
| Conductor Type |
Stranded
|
| Connection |
Funnel Entry
|
| Conductor Size |
22 to 18
|
| Country of Origin |
MEX
|
| Dimensions |
0.84 in L x 0.35 in W x 0.22 in H
|
| Finish |
Tin Plated
|
| Insulation |
Nylon - Fully Insulated
|
| Length1 |
8.1000
|
| Material |
Brass
|
| Mounting |
1932-09-01
|
| Series |
DNF-FIB
|
| Special Features |
|
| Standard |
UL 310 Listed
|
| Sub_Brand |
Panduit
|
| Temperature_Rating |
221
|
| Type |
Fully Insulated Loose Piece Vibration Resistant
|
| Voltage Rating |
600
|
