Panduit Panduit DNF18-250FI-M


Description

Industry Description

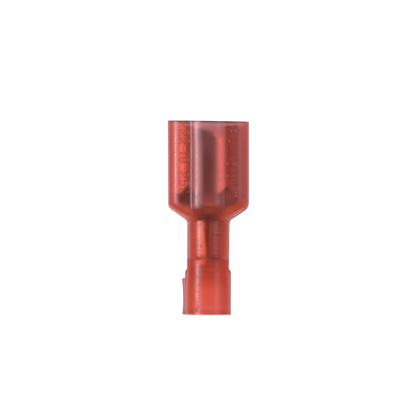

The vibration resistant female disconnect is made of brass and is tin-plated. It is fully insulated in a red, nylon housing. It has a tab size of 0.250 x 0.032" (6.3 x 0.8 mm) and supports a wire range of 22-18 AWG (0.5-1.0 mm²). It is 0.94" (23.9 mm) long and 0.36" (9.1 mm) wide. The disconnect has a funnel entry barrel configuration and an insulation grip sleeve barrel. It comes in boxes of 1000.

Modified Industry Description

Female Disconnect, nylon fully

AD Description

Panduit® Pan-Term® DNF18-250FI-M Vibration-Resistant Female Disconnect, 22 to 18 AWG Conductor, 0.25 in W x 0.032 in THK Tab, Sleeve Barrel, Brass, Red, Fully Insulated

Specifications

Color
Red
Conductor Type
Stranded
Connection
Funnel Entry
Conductor Size
22 to 18
Country of Origin
MEX
Dimensions
0.94 in L x 0.36 in W x 0.21 in H
Finish
Tin Plated
Insulation
Nylon
Length1
9.1000
Material
Brass
Mounting
1932-09-01
Series
DNF-FI
Special Features

  • Barrel design with larger outside diameter for use with more common hand tools
  • Disconnect can be inserted and removed from the male tab without the use of tools for lower installed cost
  • Fully insulated design provides protection from electrical shorts
  • Internal wire stop assures proper length of insertion into terminal barrel, providing a higher quality connection
Standard
UL 310 Listed, UL Listed 20H3 E78522; CSA Certified LR31212, C22.2 No.153
Sub_Brand
Pan-Term?®
Temperature_Rating
221
Type
Fully Insulated Loose Piece Vibration Resistant
Voltage Rating
600
