Panduit Pan-Net Panduit Pan-Net CMDBUSCZEI


Description

Industry Description

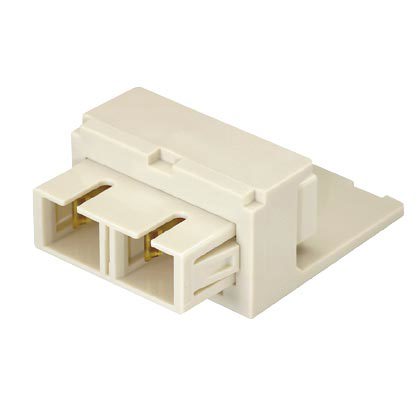

Module supplied with one SC duplex fiber optic adapter with zirconia ceramic split sleeves, Electric Ivory.

Modified Industry Description

SC Dupl (BU) Adapter (EI) Module

AD Description

Panduit® Mini-Com® CMDBUSCZEI Fiber Optic Adapter Module With Adapter, Zirconia Ceramic Split Sleeve, SC Duplex Connector, 1 Port, Single Mode Fiber

Vendor Description

SC fiber optic adapters with integrated panel retention clips are TIA/EIA-604 FOCIS-3 compliant. Each SC simplex adapter shall connect one SC connector pair in one Mini-Com® space. Each SC duplex adapter shall connect two SC connector pairs in two Mini-Com® spaces. SC adapters and adapter Mini-Com® shall include phosphor bronze split sleeves for multi-mode applications or zirconia ceramic split sleeves for singlemode applications.

Specifications

Application
Mini-Com® Modules, Patch Panels, Faceplates, Surface Mount Boxes
Color
Electric Ivory
Country of Origin
USA
Length1
4.3000
Material
Zirconia Ceramic
Operating_Temperature
140
Special Features

  • High glass transition temperature latch material maintains latch integrity/geometry in high temperature environments for improved reliability
  • Improved adapter protective cap design maximum protection from contamination; protective cap fully surrounds split sleeve opening
  • Integrated panel retention clips no metal clips to become bent, damaged or lost, clips automatically adjust for FOCIS-3 compliant panel thickness variations for improved mounting
  • Q.C. number and split sleeve material laser marked on every adapter assures 100% traceability, quick and easy identification of split sleeve material
  • Short flange design improved modularity and higher density usage
Standard
RoHS Compliant
Sub_Brand
Panduit
Type
SC Adapter Modules
