Panduit Pan-Net Panduit Pan-Net CJ6X88TGAW


Description

Industry Description

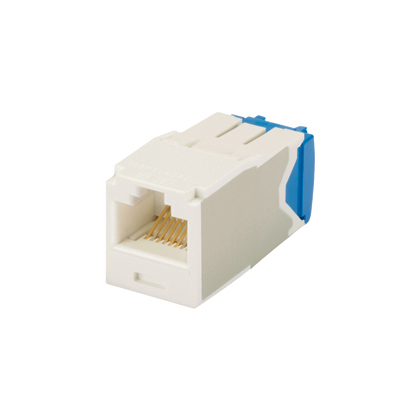

Category 6A, RJ45, 10 Gb/s, 8-position, 8-wire universal module, Arctic White.

Modified Industry Description

MINI-COM MODULE, CAT 6A, UTP, 8 POS

AD Description

Panduit® TX6A™ 10Gig™ CJ6X88TGAW 8-Position 8-Wire RJ45 Universal TG Style UTP Jack Module With MaTriX Technology, Cat6a/Mini-Com® Module, 1 Port, ABS/Polycarbonate, Arctic White

Specifications

Application
Unshielded
Color
Arctic White
Country of Origin
USA
Dimensions
0.71 in H x 0.63 in W x 1.5 in D
Length1
3.6000
Material
ABS/Polycarbonate
Special Features

  • Compatible with components of the TX6A™ and TX6A-SD™ 10 Gig UTP copper cabling system with MaTriX technology (100 and 70 m solutions) for increased design flexibility
  • Confidence that each jack module will deliver the critical electrical performance requirements
  • EGJT termination tool ensures conductors are fully terminated by utilizing a smooth forward motion without impact on critical internal components for maximum reliability, TGJT termination tool ideal for high volume installations
  • Innovative MaTriX split foil technology provides superior alien crosstalk performance enabling high density applications (48-ports, 1 RU)
  • Integrated spring shuttered door keeps out dust and debris of unmated RJ45 jack modules automatically
  • Marked with quality control number for future traceability
  • Provides a simple and secure method to control access to data ports while not in use
  • Side opening allows cable to be terminated to the right or left side of the jack module, ideal for installations that have minimal depth that may not allow standard bend radius practices to be accommodated
Standard
Exceeds Channel Requirements of ANSI/TIA-568-C.2 Category 6A and ISO 11801 Class EA Standards for Supporting 10GBASE-T Transmission Over Twisted Pair Cabling Systems in a 4-Connector Configuration up to 100 meters at Swept Frequencies 1 to 500 MHz, Exceed
Sub_Brand
Panduit
Type
8-Position 8-Wire RJ45 Universal TG Style
