Leviton Leviton 49991-LLC


Description

Industry Description

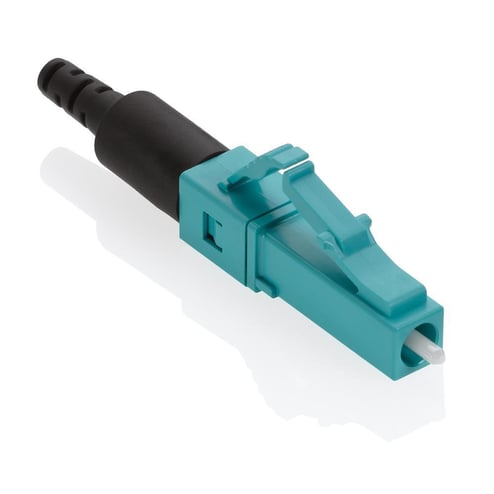

FastCAM Pre-polished Connector, LC (Aqua), 50/125um L.O. Multimode

AD Description

Leviton® FastCAM® 49991-LLC Field Installable Pre-Polished Fiber Optic Connector, LC Connector, Multi-Mode Fiber, 2 or 3 mm Jacketed/250 or 900 um Buffered Fiber, Pre-Radiused Zirconia Ferrule

Vendor Description

FastCAM® connectors are pre-polished, field installable connectors that eliminate the need for hand polishing, bonding or epoxy in the field. FastCAM® connectors are available in LC, SC or ST, single mode or multimode (standard 50/125 um, 62.5/125 um and laser optimized 50/125 um) configurations terminated on 250 or 900 um buffered fiber and/or 2 or 3 mm jacketed fiber. LC and SC connectors allow verification of optical continuity, by use of the visual fault locator (VFL). FastCAM® connectors are designed for premise environments, patch panels and rapid repair/replacement requirements, as well as data centers and applications requiring fast network deployment.

Specifications

Application
Commercial
Brand Name
Leviton
Color
Aqua
Country of Origin
UKN
Fiber_Type
Multimode
Return_Loss
25
Size
1.81 L X 0.438 W X 0.125 D
Special Features

  • Allow optical continuity to be verified by use of visual fault locator (VFL)
  • Fast and easy to install (less than 1 min)
  • Higher yields with visual fault locator (VFL) compatible LC, SC and ST connectors
  • Low insertion loss connection
  • No polishing, epoxy curing, consumables
  • No proprietary tools
  • Precision mechanical termination
  • Uses proven, molded V-groove technologies
Standard
ANSI (TIA-568-C.3);ANSI (TIA-604-10A)
Sub_Brand
FastCAM
Temperature_Rating
-40 to 75
Type
FastCAM LC
Width_2
6.5000
